Alloy 600

Alloy 600, also known as Inconel 600, is a nickel-chromium alloy known for its excellent resistance to high-temperature corrosion and oxidation.
It belongs to the Inconel family of alloys, which are renowned for their exceptional performance in challenging environments. Alloy 600 is composed primarily of nickel (around 72%) and chromium (about 15%), with smaller amounts of iron, as well as additional elements such as manganese and copper.
Alloy 600 is specifically designed to maintain its mechanical integrity and resist corrosion at elevated temperatures. It can withstand temperatures ranging from cryogenic levels to around 1093°C (2000°F).
Alloy 600 exhibits good resistance to a wide range of corrosive environments, including nitric and sulfuric acids, alkaline solutions, and various gases.

Product Description

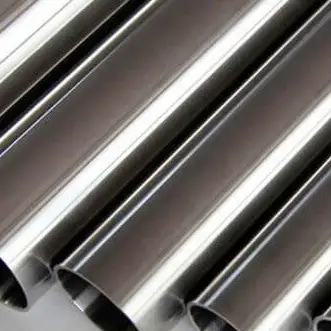

Available tube product forms
Straight
Seamless

Typical Applications
Heat exchangers
Control and instrumentation
Steam generators
Nuclear fuel element components

Typical manufacturing specifications
ASTM B163
ASTM B167
AMS 5580
BS 3074
Also individual customer specifications.

Industries predominantly using this grade
Chemical processing
Nuclear and power
Technical Data

Mechanical Properties

Temper

Annealed

Tensile Rm

110

ksi (min)

Tensile Rm

738

MPa (min)

R.p. 0.2% Yield

37

ksi (min)

R.p. 0.2% Yield

255

MPa (min)

Elongation (2” or 4D gl)

45

% (min)


Physical Properties (Room Temperature)

Specific Heat (0-100°C)

460

J.kg-1.°K-1

Thermal Conductivity

14.8

W.m -1.°K-1

Thermal Expansion

12.4

μm/μm/°C

Modulus Elasticity

207

GPa

Electrical Resistivity

10.3

Ohm-cm

Density

8.42

g/cm3


Chemical Composition (% by weight)

Element

Min

Max

C

-

0.15

Si

-

0.5

Mn

-

1

S

-

0.015

Cr

14

17

Cu

-

0.5

Fe

6

10

Ni

72

-
