Nickel 200

Nickel 200 is a commercially pure nickel alloy known for its excellent corrosion resistance, high thermal and electrical conductivity, and good mechanical properties. It is a versatile material that finds application in various industries, including chemical processing, electronics, aerospace, and marine.

Nickel 200 consists of a minimum of 99.2% nickel. The high nickel content contributes to its superior corrosion resistance and makes it resistant to a wide range of corrosive environments, including acids, alkaline solutions, and saltwater. It exhibits excellent resistance to both reducing and oxidizing conditions.

Nickel 200 can be easily fabricated using various processes, including hot or cold working methods such as forming, machining, and welding.


The primary applications of Nickel 200 include chemical processing equipment, where its corrosion resistance is highly valued. It is used in the production of electrical connectors, batteries, and electronic components due to its excellent electrical conductivity. In the aerospace industry, Nickel 200 finds application in aircraft components and rocket motor cases.

Product Description

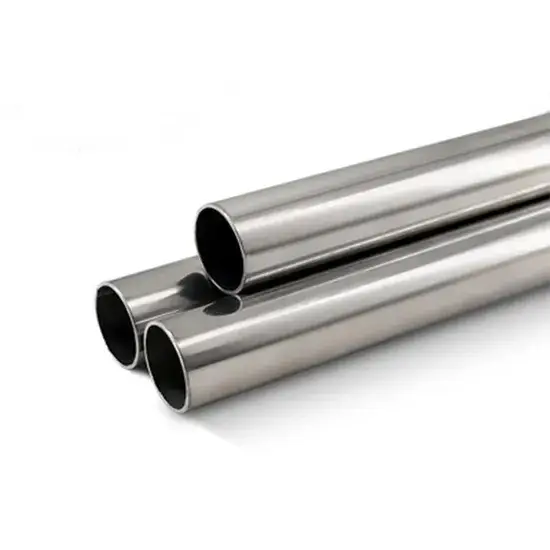

Available tube product forms
Straight
Seamless

Typical Applications
Electrical Connectors
Aircraft Components
Marine Fittings

Typical Manufacturing Specifications
ASTM B160
ASTM B161
ASTM B162
Also individual customer specifications

Industries predominantly using this grade
Chemical Processes
Electrical
Aerospace
Food Processing

Technical Data

Mechanical Properties

Tensile Strength

380 MPa (55,000 psi) minimum

Yield Strength

105 MPa (15,000 psi) minimum

Elongation

30% minimum (in 2-inch gauge length)

Hardness

HRB 45-70 (Typical)


Physical Properties

Density

8.89 g/cm³

Melting Range

1446°C (2635°F)

Thermal Conductivity

70.2 W/m·K (at 20°C)

Electrical Resistivity

9.6 μΩ·m (at 20°C)

Modulus of Elasticity

204 GPa (29.6 x 10^6 psi)


Chemical Composition (% by weight)


Element

Min

Max

Ni

99

-

Fe

-

0.4

Mn

-

0.35

C

-

0.15

Cu

-

0.25

Si

-

0.35

S

-

0.01
