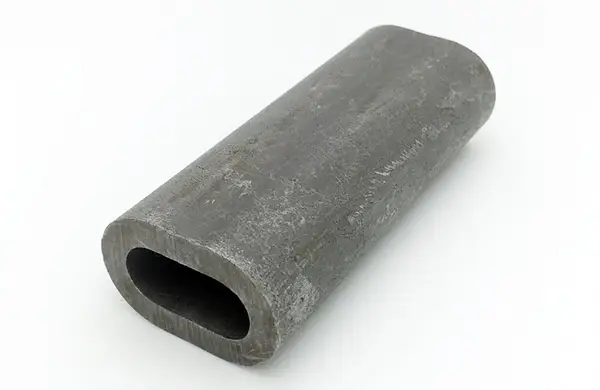

Oval seamless cold drawn steel pipe

1. Basic Concepts

Elliptical seamless cold drawn steel pipe is a seamless steel pipe with an elliptical (or oblate) cross section, manufactured by cold drawing process, with high precision, high strength, excellent surface finish and good mechanical properties.

2. Main Features

✅Seamless structure: no welds, high pressure resistance, suitable for high stress environment.

✅Elliptical cross section: compared with round tubes, it provides better bending resistance and space optimization (such as compact installation).

✅Cold drawing process: high dimensional accuracy (±0.05mm~±0.1mm), smooth surface (Ra≤0.8μm).

✅Diverse materials: carbon steel (20#, 45#), alloy steel (40Cr, 20CrMo), stainless steel (304, 316), etc.

✅Strong customizability: elliptical tubes with different major axis/minor axis ratios can be produced.

3. Manufacturing process

Hot-rolled round tube billet→2. Pickling and rust removal→3. Cold drawing (die drawing)→4. Heat treatment (annealing/normalizing)→5. Finishing (straightening, cutting, testing)

Key process description

Cold drawing: The round steel tube is drawn into an oval shape through a die to improve dimensional accuracy and surface quality.

Heat treatment: Eliminate cold working stress and improve toughness and mechanical properties.

4. Main application areas

Industry Typical use

Automotive industry Exhaust pipe, shock absorber housing, drive shaft sleeve

Machinery manufacturing Hydraulic cylinder, guide rail cover, precision instrument structural parts

Furniture & decoration High-end furniture frame, art decoration pipe

Aerospace Lightweight structural parts, fuel system pipeline

Fitness equipment Elliptical machine track, sports equipment bracket

Energy equipment Heat exchanger tube, special fluid delivery pipe
