Pipe Reducer

Hydrogrand Steel Pipe Co.,ltd.
Steel Fabrication,Special Steel,Nickel Alloy Steel Tube

Category

Pipe Reducer

Type:Concentric Reducer, Eccentric Reducer

Size: NPS from 3/4'' to 48'', DN from 20 to 1200,WT: 2-80mm, SCH 40/80/XXSS

Bending Radius: R=1D~10D, R=15D, R=20D

Material & Standard:

Carbon Steel --- ASTM A234 WPB/WPC, ASTM A105/A106/A53/A283-D, API 5l GR.B/A671-CC-70/A515-50/A135-A/A179-C

Stainless Steel --- ASTM 403 304/304L, 316/316L,316Ti,321,317L,310S;

Alloy Steel --- ASTM 234 WP 1/5/9/11/12/22/91

Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

  • Pipe Reducer
  • Pipe Reducer
  • Pipe Reducer
Description

There are two types of reducer, concentric reducer and eccentric reducer.


Concentric Reducer


Eccentric Reducer


The reducers can be made of Carbon Steel, Alloy, or Stainless steel and much more. In comparison to the Stainless Steel Reducer, Carbon Steel Reducer possesses high-pressure resistance, higher strength, and wear resistant but this can be easily corroded.


Carbon Steel Reducer material standards and grades:

A234 WPB, A420 WPL6, MSS-SP-75 WPHY 42, 46, 52, 56, 60, 65 and 70.


For Stainless Steel Reducer:

ASTM A403 WP 304, 304L, A403, 316, 316L, 317, 317L, 321, 310 and 904L, etc.


For Alloy Pipe Reducer:

A234 WP1, WP5, WP9, WP11, WP22, WP91 etc.

The reducers can be made of Carbon Steel, Alloy, or Stainless steel and much more. In comparison to the Stainless Steel Reducer, Carbon Steel Reducer possesses high-pressure resistance, higher strength, and wear resistant but this can be easily corroded.


Carbon Steel Reducer material standards and grades:

A234 WPB, A420 WPL6, MSS-SP-75 WPHY 42, 46, 52, 56, 60, 65 and 70.


For Stainless Steel Reducer:

ASTM A403 WP 304, 304L, A403, 316, 316L, 317, 317L, 321, 310 and 904L, etc.


For Alloy Pipe Reducer:

A234 WP1, WP5, WP9, WP11, WP22, WP91 etc.

Standard

The reducers can be made of Carbon Steel, Alloy, or Stainless steel and much more. In comparison to the Stainless Steel Reducer, Carbon Steel Reducer possesses high-pressure resistance, higher strength, and wear resistant but this can be easily corroded.


Carbon Steel Reducer material standards and grades:

A234 WPB, A420 WPL6, MSS-SP-75 WPHY 42, 46, 52, 56, 60, 65 and 70.


For Stainless Steel Reducer:

ASTM A403 WP 304, 304L, A403, 316, 316L, 317, 317L, 321, 310 and 904L, etc.


For Alloy Pipe Reducer:

A234 WP1, WP5, WP9, WP11, WP22, WP91 etc.

The reducers can be made of Carbon Steel, Alloy, or Stainless steel and much more. In comparison to the Stainless Steel Reducer, Carbon Steel Reducer possesses high-pressure resistance, higher strength, and wear resistant but this can be easily corroded.


Carbon Steel Reducer material standards and grades:

A234 WPB, A420 WPL6, MSS-SP-75 WPHY 42, 46, 52, 56, 60, 65 and 70.


For Stainless Steel Reducer:

ASTM A403 WP 304, 304L, A403, 316, 316L, 317, 317L, 321, 310 and 904L, etc.


For Alloy Pipe Reducer:

A234 WP1, WP5, WP9, WP11, WP22, WP91 etc.

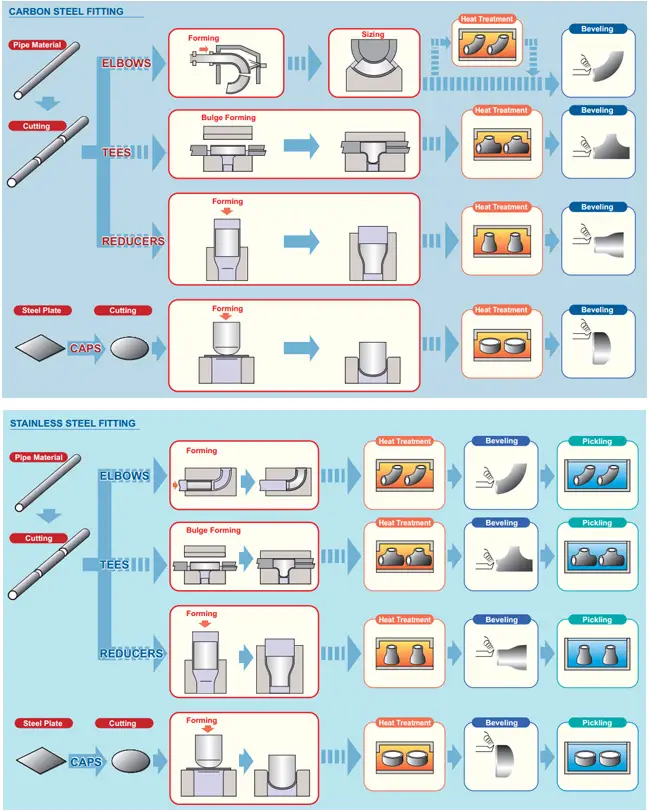

Process

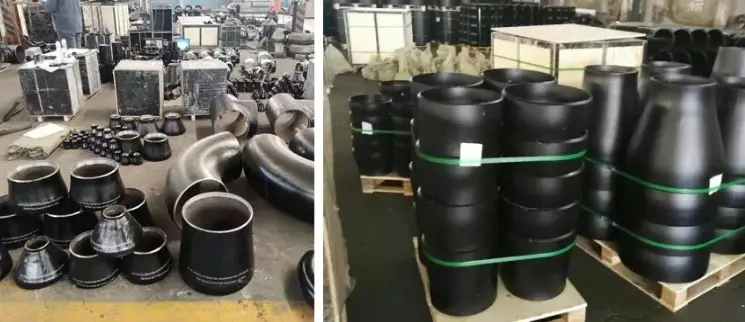

Packing
