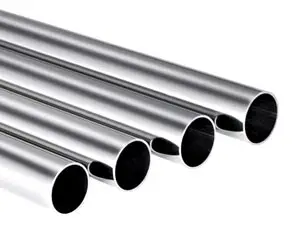

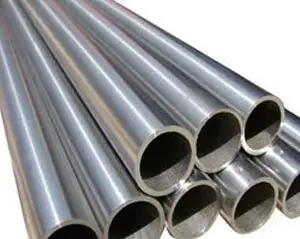

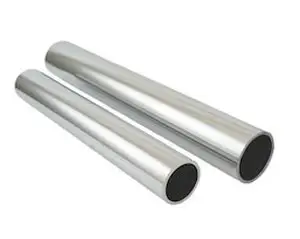

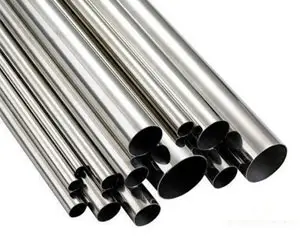

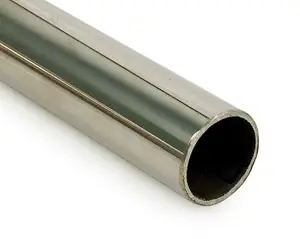

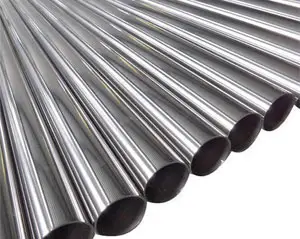

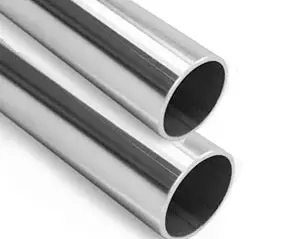

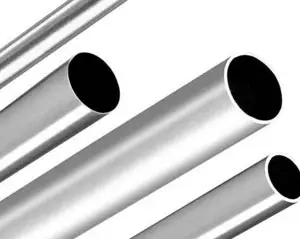

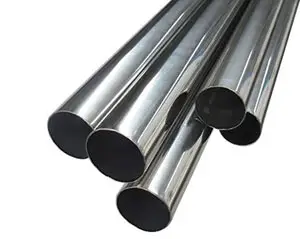

Energy Steel Industrial is reliable Stainless Steel Instrumentation Tube Suppliers that are designated according to its intended application, as well as by the type of mechanically attached fitting selected to join the tubing. SS Instrumentation Tube is mostly known as thin walled tube with strict requirements to deviation in diameter and wall thicknesses for leak-free operation on fluid transfer and pressure containment systems in process, natural gas, power, gas & oil, cryogenic and performance-critical OEM industries.
Our stock of SS Seamless Instrumentation Tubing operating conditions can require to be rated up to 60,000Psi operating pressure and with tensile strengths greater than 220 ksi (1,515 MPa). As a largest stockholder of stainless steel Instrumentation Tube includes grades stainless Steel 304 Instrumentation Tube, Stainless Steel 304L Instrumentation Tube, 316 SS Instrument Tubing, Stainless steel 316L Instrumentation Tube and Stainless Steel 201 Instrumentation Tube those are used in various indutsrial applications. Energy Steel Industrial is leading distributors, suppliers & exporters of Stainless Instrumentation Tubing which primarily consists of the austenitic instrumentation grade stainless steel tubing including 304, 304L, 316, 316L, in annealed and pickled, 2B finish, bright annealed, mill finish and polished conditions. We ensure the highest surface quality in all of our instrumentation tubing material.
Energy Steel Industrial is PED approved manufacturer & Govt. of China recognized Export House and an ISO 9001 : 2008 accredited company. Our offered Stainless Steel 304 Instrumentation Tube are widely used for various applications including beverages, bio-technology, pharmaceuticals, food processing, pure water movement, cosmetics, high purity gases, vacuum and semiconductors. SS Instrument Tubing is available ranging from 1.6 mm (0.063 inch) O.D. for precision instrumentation and monitoring applications on drilling tools up to 63 mm (2.475 inch) O.D. Custom lengths and sizes are available upon request. We are also well known as Stainless Steel Instrumentation Tube Suppliers in locations of China like Khopoli, Kolhapur, Aurangabad, Jaipur, Kolkata, Ahmedabad (Gujarat), Faridabad, Nagpur, Gurgaon, Indore, Raipur. Buy 304 Stainless Steel Instrumentation tube at best price and get discounted price in countries such as UK, Zimbabwe, Malaysia, Philippines, South Africa, Brisbane, Australia, UAE and Sydney.
| Size | 6.00 mm to 60.00 mm |
|---|---|
| Thickness | 0.6 mm THK to 6.00 mm THK |
| Range | 6.00 mm OD to 25.4 mm OD |
| Outside Diameter | 6.00 mm to 60.00 mm |
| Specification | ASTM A-269, A-268, A-213, A-789 Instrument Tube, Equivalent to ASME, EN, JIS Etc. |
| Surface | pickled, bright and black |
| Material | SS 304, SS 304L,SS 316,SS 316L |
| Finish | 20Ra ID / 32Ra OD |
| Polish | Mechanical Polished |
| Type | Seamless |
| Mill Test Certificate | EN10204 3.1 |
| Suppliers Packing | Sleeved, Ends Capped, Wooden Boxed |
MANUFACTURERS OF STAINLESS INSTRUMENTATION TUBING, INSTRUMENTATION TUBING MATERIAL STOCKHOLDERS, STAINLESS STEEL INSTRUMENT TUBING DEALERS, EXPORTERS OF 316 STAINLESS STEEL INSTRUMENTATION TUBING, WE SUPPLY SS INSTRUMENTATION TUBES FOR MINIMUM QUANTITY.
DIMENSIONS AND WALL THICKNESS OF STAINLESS STEEL INSTRUMENTATION TUBE
| 316 or 304 Stainless Steel (Seamless) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TubeO.D. Size |
Wall Thickness | |||||||||||||||
| 0.010 | 0.012 | 0.014 | 0.016 | 0.020 | 0.028 | 0.035 | 0.049 | 0.065 | 0.083 | 0.095 | 0.109 | 0.120 | 0.134 | 0.156 | 0.188 | |
| 1/16 | 5600 | 6900 | 8200 | 9500 | 12100 | 16800 | ||||||||||
| 1/8 | 8600 | 10900 | ||||||||||||||
| 3/16 | 5500 | 7000 | 10300 | |||||||||||||
| 1/4 | 4000 | 5100 | 7500 | 10300 | ||||||||||||
| 5/16 | 4100 | 5900 | 8100 | |||||||||||||
| 3/8 | 3300 | 4800 | 6600 | |||||||||||||
| 1/2 | 2600 | 3700 | 5100 | 6700 | ||||||||||||
| 5/8 | 3000 | 4000 | 5200 | 6100 | ||||||||||||
| 3/4 | 2400 | 3300 | 4300 | 5000 | 5800 | |||||||||||
| 7/8 | 2100 | 2800 | 3600 | 4200 | 4900 | |||||||||||
| 1 | 2400 | 3200 | 3700 | 4200 | 4700 | |||||||||||
| 1-1/4 | 2500 | 2900 | 3300 | 3700 | 4100 | 4900 | ||||||||||
| 1-1/2 | 2400 | 2700 | 3000 | 3400 | 4000 | 4500 | ||||||||||
| 2 | 2000 | |||||||||||||||
|
TUBE O.D (M) |
TUBE WALL THICKNESS (MM) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.071 | 0.089 | 1.00 | 1.25 | 1.50 | 1.65 | 2.00 | 2.11 | 2.41 | 2.50 | 2.77 | 3.00 | 3.05 | |
| 3 | 10800 | 13800 | 15300 | ||||||||||
| 4 | 7900 | 10100 | 11500 | 14400 | |||||||||
| 5 | 5000 | 6500 | 7400 | 9400 | 11500 | 12700 | |||||||
| 8 | 4700 | 5800 | 6800 | 8400 | 9300 | ||||||||
| 10 | 3700 | 4200 | 5300 | 6500 | 7300 | ||||||||
| 12 | 3000 | 3400 | 4400 | 5300 | 5900 | 6800 | 7200 | ||||||
| 16 | 2500 | 3200 | 3900 | 4300 | 5300 | 5700 | 6600 | 6800 | |||||
| 18 | 2800 | 3400 | 3800 | 4700 | 5000 | 5800 | 6000 | 6700 | |||||
| 20 | 2500 | 3000 | 3400 | 4200 | 4400 | 5100 | 5300 | 6000 | |||||
| 22 | 2300 | 2800 | 3000 | 3800 | 4000 | 4600 | 4800 | 5400 | |||||
| 25 | 2000 | 2400 | 2700 | 3300 | 3500 | 4000 | 4200 | 4700 | 5100 | 5200 | |||
| AVE. WALL INCHES | MIN YIELD STRENGTH (PSI) | MIN TENSILE STRENGTH (PSI) | THEORETICAL BURST PRESSURE * (PSI) | WORKING PRESSURE (PSI) 25% OF BURST | THEORETICAL YIELD POINT ** (PSI) | COLLAPSE PRESSURE *** (PSI) | |
|---|---|---|---|---|---|---|---|
| 0.250 | 0.020 | 30,000 | 75,000 | 14,286 | 3,571 | 5,714 | 4,416 |
| 0.250 | 0.028 | 30,000 | 75,000 | 21,649 | 5,412 | 8,660 | 5,967 |
| 0.250 | 0.035 | 30,000 | 75,000 | 29,167 | 7,292 | 11,667 | 7,224 |
| 0.250 | 0.049 | 30,000 | 75,000 | 48,355 | 12,089 | 19,342 | 9,455 |
| 0.250 | 0.065 | 30,000 | 75,000 | 81,250 | 20,313 | 32,500 | 11,544 |
| 0.375 | 0.020 | 30,000 | 75,000 | 8,955 | 2,239 | 3,582 | 3,029 |
| 0.375 | 0.028 | 30,000 | 75,000 | 13,166 | 3,292 | 5,266 | 4,145 |
| 0.375 | 0.035 | 30,000 | 75,000 | 17,213 | 4,303 | 6,885 | 5,077 |
| 0.375 | 0.049 | 30,000 | 75,000 | 26,534 | 6,634 | 10,614 | 6,816 |
| 0.375 | 0.065 | 30,000 | 75,000 | 39,796 | 9,949 | 15,918 | 8,597 |
| 0.500 | 0.020 | 30,000 | 75,000 | 6,522 | 1,630 | 2,609 | 2,304 |
| 0.500 | 0.028 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
| 0.500 | 0.035 | 30,000 | 75,000 | 12,209 | 3,052 | 4,884 | 3,906 |
| 0.500 | 0.049 | 30,000 | 75,000 | 18,284 | 4,571 | 7,313 | 5,304 |
| 0.500 | 0.065 | 30,000 | 75,000 | 26,351 | 6,588 | 10,541 | 6,786 |
| 0.500 | 0.083 | 30,000 | 75,000 | 37,275 | 9,319 | 14,910 | 8,307 |
| 0.625 | 0.020 | 30,000 | 75,000 | 5,128 | 1,282 | 2,051 | 1,859 |
| 0.625 | 0.028 | 30,000 | 75,000 | 7,381 | 1,845 | 2,953 | 2,568 |
| 0.625 | 0.035 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 |
| 0.625 | 0.049 | 30,000 | 75,000 | 13,947 | 3,487 | 5,579 | 4,335 |
| 0.625 | 0.065 | 30,000 | 75,000 | 19,697 | 4,924 | 7,879 | 5,591 |
| 0.625 | 0.083 | 30,000 | 75,000 | 27,124 | 6,781 | 10,850 | 6,910 |
| 0.625 | 0.095 | 30,000 | 75,000 | 32,759 | 8,190 | 13,103 | 7,734 |
| 0.625 | 0.109 | 30,000 | 75,000 | 40,172 | 10,043 | 16,069 | 8,639 |
| 0.750 | 0.028 | 30,000 | 75,000 | 6,052 | 1,513 | 2,421 | 2,156 |
| 0.750 | 0.035 | 30,000 | 75,000 | 7,721 | 1,930 | 3,088 | 2,669 |
| 0.750 | 0.049 | 30,000 | 75,000 | 11,273 | 2,818 | 4,509 | 3,664 |
| 0.750 | 0.065 | 30,000 | 75,000 | 15,726 | 3,931 | 6,290 | 4,749 |
| 0.750 | 0.083 | 30,000 | 75,000 | 21,318 | 5,330 | 8,527 | 5,905 |
| 0.750 | 0.095 | 30,000 | 75,000 | 25,446 | 6,362 | 10,179 | 6,637 |
| 0.750 | 0.109 | 30,000 | 75,000 | 30,733 | 7,683 | 12,293 | 7,453 |
| 0.750 | 0.120 | 30,000 | 75,000 | 35,294 | 8,824 | 14,118 | 8,064 |
| 0.875 | 0.020 | 30,000 | 75,000 | 3,593 | 898 | 1,437 | 1,340 |
| 0.875 | 0.028 | 30,000 | 75,000 | 5,128 | 1,282 | 2,051 | 1,859 |
| 0.875 | 0.035 | 30,000 | 75,000 | 6,522 | 1,630 | 2,609 | 2,304 |
| 0.049 | 30,000 | 75,000 | 9,459 | 2,365 | 3,784 | 3,172 | |
| 0.875 | 0.065 | 30,000 | 75,000 | 13,087 | 3,272 | 5,235 | 4,126 |
| 0.875 | 0.083 | 30,000 | 75,000 | 17,560 | 4,390 | 7,024 | 5,152 |
| 0.875 | 0.095 | 30,000 | 75,000 | 20,803 | 5,201 | 8,321 | 5,807 |
| 0.875 | 0.109 | 30,000 | 75,000 | 24,886 | 6,221 | 9,954 | 6,543 |
| 0.875 | 0.120 | 30,000 | 75,000 | 28,346 | 7,087 | 11,339 | 7,100 |
| 1.000 | 0.028 | 30,000 | 75,000 | 4,449 | 1,112 | 1,780 | 1,633 |
| 1.000 | 0.035 | 30,000 | 75,000 | 5,645 | 1,411 | 2,258 | 2,027 |
| 1.000 | 0.049 | 30,000 | 75,000 | 8,149 | 2,037 | 3,259 | 2,796 |
| 1.000 | 0.065 | 30,000 | 75,000 | 11,207 | 2,802 | 4,483 | 3,647 |
| 1.000 | 0.083 | 30,000 | 75,000 | 14,928 | 3,732 | 5,971 | 4,567 |
| 1.000 | 0.095 | 30,000 | 75,000 | 17,593 | 4,398 | 7,037 | 5,159 |
| 1.000 | 0.109 | 30,000 | 75,000 | 20,908 | 5,227 | 8,363 | 5,827 |
| 1.000 | 0.120 | 30,000 | 75,000 | 23,684 | 5,921 | 9,474 | 6,336 |
| 1.000 | 0.134 | 30,000 | 75,000 | 27,459 | 6,865 | 10,984 | 6,963 |
| 1.250 | 0.035 | 30,000 | 75,000 | 4,449 | 1,112 | 1,780 | 1,633 |
| 1.250 | 0.049 | 30,000 | 75,000 | 6,380 | 1,595 | 2,552 | 2,260 |
| SIZE OD | NOMINAL WALL THICKNESS | OUTSIDE DIAMETER TOLERANCE | LENGTH TOLERANCE | WALL THICKNESS TOLERANCE | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (%) |
| ½ | 12.7 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| ¾ | 19.1 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1 | 25.4 | 0.065 | 1.65 | +/-0.005 | +/-0.13 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 1½ | 38.1 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2 | 50.8 | 0.065 | 1.65 | +/-0.008 | +/-0.20 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 2½ | 63.5 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 3 | 76.2 | 0.065 | 1.65 | +/-0.010 | +/-0.25 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 4 | 101.6 | 0.083 | 2.11 | +/-0.015 | +/-0.38 | +⅛, -0 | +3.18, -0 | +/-10.0% |
| 6 | 152.4 | 0.109 | 2.77 | +/-0.030 | +/-0.76 | +1, -0 | +25.4, -0 | +/-10.0% |
The below table shows the chemical composition of the used for Stainless Steel Instrumentation Tube:
| STAINLESS STEEL Instrumentation Tube GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
|---|---|---|---|---|---|
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| Stainless Steel TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| Stainless Steel TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| Stainless Steel TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| Stainless Steel TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| Stainless Steel Instrumentation Tube 304 | S30400 | 1.4301 |
| Stainless Steel Instrumentation Tube 304L | S30403 | 1.4306 |
| Stainless Steel Instrumentation Tube 316 | S31600 | 1.4436 |
| Stainless Steel Instrumentation Tube 316L | S31603 | 1.4404 |
