ASTM A249 Stainless Steel Tube

ASTM A249 SEAMLESS TUBING MANUFACTURERS IN China, BUY SS ASME SA 249 M TUBING AT LOW COST

WELL-KNOWN STAINLESS STEEL ASTM A249 TUBING DISTRIBUTORS IN China, STOCKHOLDERS OF ASME SA249 TUBING, TUBOS ASTM A249 STAINLESS TUBES SUPPLIERS

ASTM A249 Specfication covers nominal-wall-thickness welded tubes and heavily cold worked welded tubes made from the austenitic steels. ASTM A249 Stainless Tube Suppliers in China shall conform to the prescribed tensile and hardness properties such as tensile strength, yield strength, elongation, and Rockwell hardness number. Our offered ASTM A249 Specification for nominal wall thickness ASTM A249 Stainless Steel Welded Tubes and heavily cold worked welded tubes made from the austenitic steels with various grades intended for such use as a superheater, heat exchanger, boiler, or condenser tubes.



ASTM A249 Tubing sizes and thicknesses usually furnished to this specification are 1/8 in. [3.2 mm] in inside diameter to 12 inch [304.8 mm] in outside diameter and 0.015 to 0.320 inch [0.4 to 8.1 mm], inclusive, in wall thickness. Tubing having other dimensions furnished, provided such tubings comply with all other requirements of this specification. Energy Steel Industrial is one of well reputed ASTM A249 Seamless Tubing supplier in countries like Finland, Canada, Zimbabwe, UK, Philippines, France, Italy, Sweden, Netherlands, Malaysia, Germany, China, South Africa, which are the most versatile and widely used stainless steels. Also, each ASME SA249 tube undergo mechanical tests such as flattening test, flange test, tension test, reverse-bend test, hardness test, and hydrostatic or nondestructive electric test.


Materials shall be furnished in the heat-treated condition in accordance with the required solution temperature and quenching method. We stocks a wide range of industry standard sizes of welded stainless steel tubes in Tubos ASTM A249. We are one of the well-known distributor and manufacturer of ASTM A249 Tube. Energy Steel Industrial is China's largest independent stockholder of astm a249 stainless tube suppliers includes ASTM A249 TP304, ASTM A249 TP304L, ASTM A249 TP316, ASTM A249 TP316L and ASTM A249 TP201 in custom-made shapes and sizes as per the requirements given by our clients, and get SS ASME SA 249 M Tubing that too at an affordable and market leading prices in cities of China such as Kolkata, Khopoli, Kolhapur, Jaipur, Gurgaon, Aurangabad, Indore, Faridabad, Nagpur, Raipur.


  • ASTM A249 STAINLESS TUBE SUPPLIERS
  • ASTM A249 SEAMLESS TUBING
  • ASTM A249 TUBING
ASTM A249 STAINLESS TUBE SPECIFICATION, ASTM A249 TUBING SPECIFICATION
ASTM A249 Welded Tube Type: Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
ASTM A249 Grades: ASTM A249, ASME SA249 TP304
ASTM A249 Welded Tube Size: 1/8” NB to 5” NB, 1/4” OD to 5” OD sizes stainless steel seamless tubes also available
ASTM A249 Tube Length: Up to 6 meters, custom cut lengths
ASTM A249 Tube Thickness: 1mm to 13mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
ASTM A249 Tube Finish: No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Pipes
ASTM A249 Welded Tube Delivery Condition: Hot Finish, Cold Finish, Bright Annealed, Polished, Annealed and Pickled, Passivated, Stress Relived

ASTM A249 TP304 TUBE
Exhibit excellent corrosion resistance to a wide range of corrosive environments.


ASTM A249 TP304L TUBE
Grade 304L exhibit excellent machinability and good weldability.


ASTM A249 TP316 TUBE
Austenitic stainless steel that's similar to 304 and 304L, but with the addition of molybdenum.


ASTM A249 TP316L TUBE
Exhibit excellent corrosion resistance to a wide range of corrosive environments.


ASTM A249 TP201 TUBE
ASTM A249 Grade 201 has good formability, corrosion resistance, and fabricability.


GET STAINLESS STEEL TUBE ASTM A249 TOLERANCES, WE PROVIDE HIGH-QUALITY ASTM A249 STAINLESS STEEL WELDED TUBES, EXPORTERS OF ASTM A249 STEEL TUBE, DEALERS OF ASTM A249 MATERIAL, ALL SIZES AVAILABLE IN ASTM A249 STAINLESS STEEL TUBING

ASTM A249 TUBE SIZES
ASTM A249 Stainless tube Suppliers in India are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a stainless steel seamless tube is manufactured in sizes from 1/2” to 8”NB according to current standards API, ASTM, and ASME.
TYPES-OF-ASTM-A249-STAINLESS-TUBE-SUPPLIERS

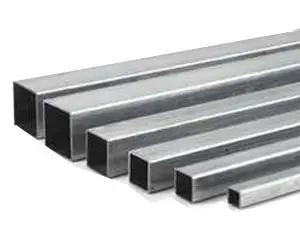

  • ASTM A249 SQUARE TUBE
  • ASTM A249 SEAMLESS TUBE

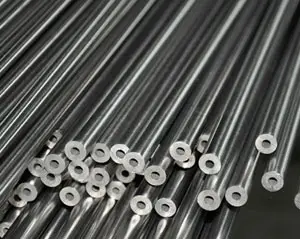

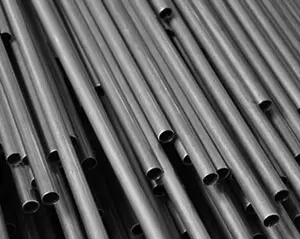

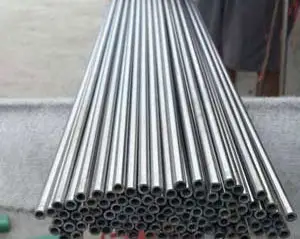

  • ASTM A249 ROUND TUBE

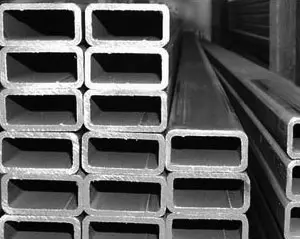

  • ASTM A249 RECTANGULAR TUBE

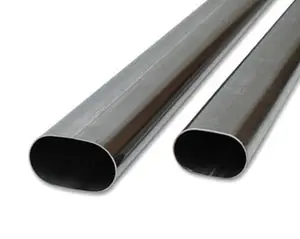

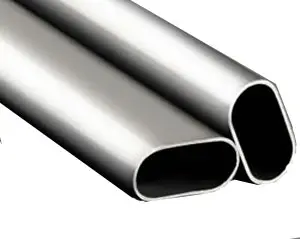

  • ASTM A249 OVAL TUBE

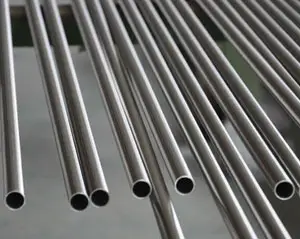

  • ASTM A249 POLISHED TUBE

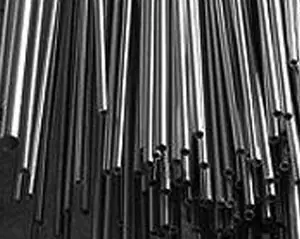

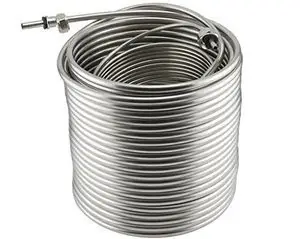

  • ASTM A249 CAPILLARY TUBE

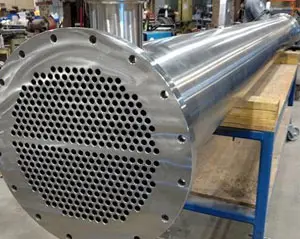

  • ASTM A249 HEAT EXCHANGER TUBE
  • ASTM A249 BOILER TUBE

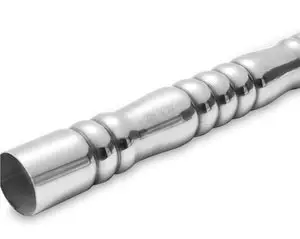

  • ASTM A249 DECORATIVE TUBE
  • ASTM A249 SANITARY TUBE
  • ASTM A249 HOLLOW TUBE
  • ASTM A249 EXHAUST TUBE
  • ASTM A249 CONDENSER TUBE

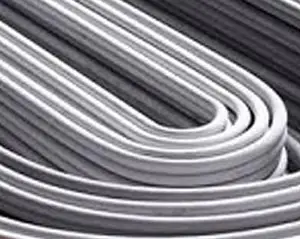

  • ASTM A249 U TUBE

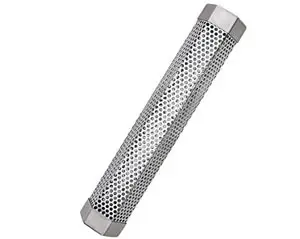

  • ASTM A249 PEROFRATED TUBE
ASTM A249 TUBE DIMENSIONS AND WEIGHTS

ASTM A249 Round Tube stainless steel - ASTM A249 Welded Mirror Polished

  O/D Wall Weight per O/D Wall Weight per
  (ins) (mm) metre (kg) (ins) (mm) metre (kg)
ASTM A249 Stainless Tube 1/2 1.50 0.42 1 1/4 1.50 1.13
ASTM A249 Stainless Tube 5/8 1.20 0.44 1 3/8 1.20 1.02
ASTM A249 Stainless Tube 5/8 1.50 0.54 1 1/2 1.20 1.11
ASTM A249 Stainless Tube 3/4 1.20 0.53 1 1/2 1.50 1.38
ASTM A249 Stainless Tube 3/4 1.50 0.66 1 1/2 2.00 1.81
ASTM A249 Stainless Tube 3/4 1.20 0.63 1 3/4 1.50 1.62
ASTM A249 Stainless Tube 7/8 1.50 0.78 2 1.20 1.49
ASTM A249 Stainless Tube 7/8 2.00 1.01 2 1.50 1.85
ASTM A249 Stainless Tube 1 1.20 0.73 2 2.00 2.40
ASTM A249 Stainless Tube 1 1.50 0.90 2 1/2 1.50 2.34
ASTM A249 Stainless Tube 1 2.00 1.17 3 1.50 2.81
ASTM A249 Stainless Tube 1 1/8 1.50 1.02 4 3.00 7.41
ASTM A249 Stainless Tube 1 1/4 1.20 0.92

ASTM A249 SQUARE TUBE 304 WELDED DULL POLISHED

  Dimensions Wall Weight per Dimensions Wall Weight per
  (mm) (mm) metre (kg) (mm) (mm) metre (kg)
ASTM A249 Stainless Steel Tube 12.7 x 12.7 1.20 0.44 40 x40 1.20 1.49
ASTM A249 Stainless Steel Tube 12.7 x 12.7 1.50 0.55 40 x40 1.50 1.85
ASTM A249 Stainless Steel Tube 15 x 15 1.20 0.53 40 x40 2.00 2.45
ASTM A249 Stainless Steel Tube 15 x 15 1.50 0.65 40 x40 3.00 3.75
ASTM A249 Stainless Steel Tube 20 x 20 1.20 0.71 50 x50 1.50 2.32
ASTM A249 Stainless Steel Tube 20 x 20 1.50 0.88 50 x50 2.00 3.08
ASTM A249 Stainless Steel Tube 20 x 20 2.00 1.19 50 x50 3.00 4.65
ASTM A249 Stainless Steel Tube 25 x 25 1.20 0.92 60 x60 2.00 3.71
ASTM A249 Stainless Steel Tube 25 x 25 1.50 1.14 60 x60 3.00 5.49
ASTM A249 Stainless Steel Tube 25 x 25 2.00 1.49 70 x70 3.00 6.53
ASTM A249 Stainless Steel Tube 25 x 25 3.00 2.20 80 x80 2.00 4.98
ASTM A249 Stainless Steel Tube 30 x 30 1.20 1.10 80 x80 3.00 7.53
ASTM A249 Stainless Steel Tube 30 x 30 1.50 1.37 100 x 100 2.00 6.40
ASTM A249 Stainless Steel Tube 30 x 30 2.00 1.84 100 x 100 3.00 9.53
ASTM A249 Stainless Steel Tube 30 x 30 3.00 2.72

ASTM A249 SQUARE TUBE 304 WELDED UNPOLISHED

  Dimensions (mm) Wall (mm) Weight per metre (kg) Dimensions (mm) Wall (mm) Weight per metre (kg)
  12.7 x 12.7 1.20 0.44 120 x 120 5.00 18.66
ASTM A249 Stainless Tube 12.7 x 12.7 1.50 0.55 120 x 120 6.00 21.20
ASTM A249 Stainless Tube 40 x 40 4.00 4.80 150 x 150 4.00 18.60
ASTM A249 Stainless Tube 50 x 50 4.00 5.96 150 x 150 5.00 23.00
ASTM A249 Stainless Tube 50 x 50 5.00 7.41 150 x 150 6.00 31.20
ASTM A249 Stainless Tube 60 x 60 4.00 7.22 150 x 150 8.00 34.30
ASTM A249 Stainless Tube 60 x 60 5.00 8.90 150 x 150 10.00 41.65
ASTM A249 Stainless Tube 80 x 80 4.00 9.82 200 x 200 5.00 30.80
ASTM A249 Stainless Tube 80 x 80 5.00 12.39 200 x 200 6.00 36.90
ASTM A249 Stainless Tube 100 x 100 4.00 12.40 200 x 200 8.00 47.25
ASTM A249 Stainless Tube 100 x 100 5.00 15.38 200 x 200 10.00 57.60
ASTM A249 Stainless Tube 100 x 100 6.00 17.50 250 x 250 8.00 59.90
ASTM A249 Stainless Tube 100 x 100 8.00 21.60 250 x 250 10.00 73.50

ASTM A249 TYPE 304 HANDRAIL SECTION, WELDED, UNANNEALED (DULL POLISHED)

  O/D Wall Weight per O/D Wall Weight per
  (mm) (mm) metre (kg) (in) (mm) metre (kg)
ASTM A249 Stainless Steel Tube 42.40 x 2.5 2.49 1 1/2 3.00 2.62
ASTM A249 Stainless Steel Tube 48.30 x 2.5 2.86 2 3.00 3.57
ASTM A249 Stainless Steel Tube 60.30 x 2.5 3.61 3 3.00 5.47
4 3.00 7.38

RECTANGULAR 304 TUBE WELDED UNPOLISHED

  Dimensions (mm) Wall (mm) Weight per metre (kg) Dimensions(mm) Wall (mm) Weight per metre (kg)
ASTM A249 Stainless Tube 80 x 40 4.00 7.22 150 x 100 4.00 15.40
ASTM A249 Stainless Tube 80 x 40 5.00 8.90 150 x 100 5.00 18.80
ASTM A249 Stainless Tube 100 x 50 4.00 9.09 150 x 100 6.00 22.60
ASTM A249 Stainless Tube 100 x 50 5.00 11.30 150 x 100 8.00 27.90
ASTM A249 Stainless Tube 120 x 60 3.00 8.39 200 x 100 4.00 18.60
ASTM A249 Stainless Tube 120 x 60 4.00 11.10 200 x 100 5.00 22.60
ASTM A249 Stainless Tube 120 x 60 5.00 13.75 200 x 100 6.00 27.40
ASTM A249 Stainless Tube 120 x 80 3.00 9.54 200 x 100 8.00 34.30
ASTM A249 Stainless Tube 120 x 80 4.00 12.40 200 x 100 10.00 41.65
ASTM A249 Stainless Tube 120 x 80 5.00 15.38 200 x 150 6.00 36.90
ASTM A249 Stainless Tube 150 x 50 3.00 9.53 200 x 150 8.00 41.34
ASTM A249 Stainless Tube 150 x 50 5.00 15.38 300 x 100 8.00 47.25
ASTM A249 Stainless Tube 150 x 80 3.00 10.70 250 x 150 6.00 36.90
ASTM A249 Stainless Tube 150 x 100 3.00 11.70 250 x 150 8.00 47.25

ASTM A249 RECTANGULAR 304 STAINLESS STEEL TUBE WELDED DULL POLISHED


  Dimensions (mm) Wall (mm) Weight per metre (kg) Dimensions (mm) Wall (mm) Weight per metre (kg)
ASTM A249 Stainless Tube 20 x 10 1.50 0.44 60 x 40 2.00 3.08
ASTM A249 Stainless Tube 30 x 10 1.20 0.71 60 x 40 3.00 4.65
ASTM A249 Stainless Tube 30 x 10 1.50 0.90 80 x 40 1.50 2.80
ASTM A249 Stainless Tube 30 x 15 1.50 0.76 80 x 40 2.00 3.71
ASTM A249 Stainless Tube 30 x 20 1.50 1.14 80 x 40 3.00 5.49
ASTM A249 Stainless Tube 40 x 15 1.50 1.25 80 x 40 4.00 7.22
ASTM A249 Stainless Tube 40 x 20 1.20 1.10 80 x 40 5.00 8.94
ASTM A249 Stainless Tube 40 x 20 1.50 1.37 80 x 60 3.00 6.53
ASTM A249 Stainless Tube 40 x 20 2.00 1.84 100 x 40 1.50 3.29
ASTM A249 Stainless Tube 50 x 25 1.20 1.41 100 x 40 3.00 6.53
ASTM A249 Stainless Tube 50 x 25 1.50 1.75 100 x 50 2.00 4.68
ASTM A249 Stainless Tube 50 x 25 2.00 2.31 100 x 50 3.00 6.95
ASTM A249 Stainless Tube 50 x 25 3.00 3.75 100 x 50 4.00 9.09
ASTM A249 Stainless Tube 50 x 30 1.50 1.85 100 x 50 5.00 11.30
ASTM A249 Stainless Tube 50 x 30 3.00 3.61 100 x 60 3.00 7.53
ASTM A249 Stainless Tube 60 x 20 1.50 1.85 120 x 60 3.00 8.12
ASTM A249 Stainless Tube 60 x 20 2.00 2.45 120 x 80 3.00 9.53
ASTM A249 Stainless Tube 60 x 30 2.00 2.80 150 x 100 3.00 11.70
ASTM A249 Stainless Tube 60 x 30 3.00 4.13 150 x 100 5.00 18.80
ASTM A249 Stainless Tube 60 x 40 1.50 2.32
ANSI PIPE SCH5 TO SCH40 CHART
Pipe Size O.D. Inches 5s TRUE 5 10s TRUE 10 20 30 40s & STD TRUE 40 60
1/8 0.405 0.35 0.049 0.049 0.068 0.068
0.1383 0.1863 0.1863 0.2447 0.2447
1/4 0.54 0.049 0.065 0.065 0.088 0.088
0.257 0.3297 0.3297 0.4248 0.4248
3/8 0.675 0.049 0.065 0.065 0.091 0.091
0.3276 0.4235 0.4235 0.5676 0.5676
1/2 0.84 0.065 0.065 0.083 0.083 0.109 0.109
0.5383 0.5383 0.671 0.671 0.851 0.851
3/4 1.05 0.065 0.065 0.083 0.083 0.113 0.113
0.6838 0.6838 0.8572 0.8572 1.131 1.131
1 1.315 0.065 0.065 0.109 0.19 0.133 0.133
0.8678 0.8678 1.404 1.404 1.679 1.679
1 1/4 1.66 0.065 0.065 0.109 0.109 0.14 0.14
1.107 1.107 1.806 1.806 2.273 2.273
1 1/2 1.9 0.065 0.065 0.109 0.109 0.145 0.145
1.274 1.274 2.638 2.638 2.718 2.718
2 2.375 0.065 0.065 0.109 0.109 0.154 0.154
1.604 1.604 2.638 2.638 3.653 3.653
2 1/2 2.875 0.083 0.083 0.12 0.12 0.203 0.203
2.475 2.475 3.531 3.531 5.793 5.793
3 3.5 0.083 0.083 0.12 0.12 0.216 0.216
3.029 3.029 4.332 4.332 7.576 7.576
3 1/2 4 0.083 0.083 0.12 0.12 0.226 0.226
3.472 3.472 4.97 4.97 9.109 9.109
4 4.5 0.083 0.083 0.12 0.12 0.237 0.237 0.281
3.915 3.915 5.613 5.613 10.79 10.79 12.66
4 1/2 5 0.247
12.53
5 5.563 0.109 0.109 0.134 0.134 0.258 0.258
6.349 6.349 7.77 7.77 14.62 14.62
6 6.625 0.109 0.109 0.134 0.134 0.28 0.28
7.585 7.585 9.289 9.289 18.97 18.97
7 7.625 0.301
23.57
8 8.625 0.109 0.109 0.148 0.148 0.25 0.277 0.322 0.322 0.406
9.914 9.914 13.4 13.4 22.36 24.7 28.55 28.55 35.64
9 9.625 0.342
33.9
10 10.75 0.134 0.134 0.165 0.165 0.25 0.307 0.365 0.365 0.5
15.19 15.19 18.65 18.65 28.04 34.24 40.48 40.48 54.74
11 11.75 0.375
45.55
12 12.75 0.156 0.165 0.18 0.18 0.25 0.33 0.375 0.406 0.562
21.07 22.18 24.2 24.2 33.38 43.77 49.56 53.53 73.16
14 14 0.156 0.188 0.25 0.312 0.375 0.375 0.437 0.593
23.06 27.73 36.71 45.68 54.57 54.57 63.67 84.91
16 16 0.165 0.188 0.25 0.312 0.375 0.375 0.5 0.656
27.9 31.75 42.05 52.36 62.58 62.58 82.77 107.5
18 18 0.165 0.188 0.25 0.312 0.437 0.375 0.562 0.75
31.43 35.76 47.39 59.03 82.06 70.59 104.8 138.2
20 20 0.188 0.218 0.25 0.375 0.5 0.375 0.593 0.812
39.78 46.05 52.73 78.6 104.1 78.6 122.9 166.4
24 24 0.218 0.25 0.25 0.375 0.562 0.375 0.687 0.968
55.37 63.41 63.41 94.62 140.8 94.62 171.2 238.1
26 26 0.312 0.5 0.375
85.6 136.2 102.6
28 28 0.312 0.5 0.625 0.375
92.26 146.8 182.7 110.6
30 30 0.25 0.312 0.312 0.5 0.625 0.375
79.43 98.93 98.93 157.5 196.1 118.6
32 32 0.312 0.5 0.625 0.375 0.688
105.6 168.2 209.4 126.7 230.1
34 34 0.312 0.5 0.625 0.375 0.688
112.3 178.9 222.8 134.7 244.8
36 36 0.312 0.625 0.375 0.75
118.9 236.1 142.7 282.3
40 40 0.375
158.7
42 42 0.375
166.7
48 48 0.375
190.7
ASTM A249 TUBE PRESSURE RATING

TUBE PRESSURE RATING FOR ASTM A249

  OD inches Ave. Wall inches Min Yield Strength (PSI) Min Tensile Strength (PSI) Theoretical Burst Pressure * (PSI) Working Pressure (PSI) 25% of Burst Theoretical Yield Point ** (PSI) Collapse Pressure *** (PSI)
SS A249 Tubing 0.250 0.020 30,000 75,000 14,286 3,571 5,714 4,416
SS A249 Tubing 0.250 0.028 30,000 75,000 21,649 5,412 8,660 5,967
SS A249 Tubing 0.250 0.035 30,000 75,000 29,167 7,292 11,667 7,224
SS A249 Tubing 0.250 0.049 30,000 75,000 48,355 12,089 19,342 9,455
SS A249 Tubing 0.250 0.065 30,000 75,000 81,250 20,313 32,500 11,544
SS A249 Tubing 0.375 0.020 30,000 75,000 8,955 2,239 3,582 3,029
SS A249 Tubing 0.375 0.028 30,000 75,000 13,166 3,292 5,266 4,145
SS A249 Tubing 0.375 0.035 30,000 75,000 17,213 4,303 6,885 5,077
SS A249 Tubing 0.375 0.049 30,000 75,000 26,534 6,634 10,614 6,816
SS A249 Tubing 0.375 0.065 30,000 75,000 39,796 9,949 15,918 8,597
SS A249 Tubing 0.500 0.020 30,000 75,000 6,522 1,630 2,609 2,316L
SS A249 Tubing 0.500 0.028 30,000 75,000 9,459 2,365 3,784 3,172
SS A249 Tubing 0.500 0.035 30,000 75,000 12,209 3,052 4,884 3,906
SS A249 Tubing 0.500 0.049 30,000 75,000 18,284 4,571 7,313 5,316L
SS A249 Tubing 0.500 0.065 30,000 75,000 26,351 6,588 10,541 6,786
SS A249 Tubing 0.500 0.083 30,000 75,000 37,275 9,319 14,910 8,307
SS A249 Tubing 0.625 0.020 30,000 75,000 5,128 1,282 2,051 1,859
SS A249 Tubing 0.625 0.028 30,000 75,000 7,381 1,845 2,953 2,568
SS A249 Tubing 0.625 0.035 30,000 75,000 9,459 2,365 3,784 3,172
SS A249 Tubing 0.625 0.049 30,000 75,000 13,947 3,487 5,579 4,335
SS A249 Tubing 0.625 0.065 30,000 75,000 19,697 4,924 7,879 5,591
SS A249 Tubing 0.625 0.083 30,000 75,000 27,124 6,781 10,850 6,910
SS A249 Tubing 0.625 0.095 30,000 75,000 32,759 8,190 13,103 7,734
SS A249 Tubing 0.625 0.109 30,000 75,000 40,172 10,043 16,069 8,639
SS A249 Tubing 0.750 0.028 30,000 75,000 6,052 1,513 2,421 2,156
SS A249 Tubing 0.750 0.035 30,000 75,000 7,721 1,930 3,088 2,669
SS A249 Tubing 0.750 0.049 30,000 75,000 11,273 2,818 4,509 3,664
SS A249 Tubing 0.750 0.065 30,000 75,000 15,726 3,931 6,290 4,749
SS A249 Tubing 0.750 0.083 30,000 75,000 21,318 5,330 8,527 5,905
SS A249 Tubing 0.750 0.095 30,000 75,000 25,446 6,362 10,179 6,637
SS A249 Tubing 0.750 0.109 30,000 75,000 30,733 7,683 12,293 7,453
SS A249 Tubing 0.750 0.120 30,000 75,000 35,294 8,824 14,118 8,064
SS A249 Tubing 0.875 0.020 30,000 75,000 3,593 898 1,437 1,340
SS A249 Tubing 0.875 0.028 30,000 75,000 5,128 1,282 2,051 1,859
SS A249 Tubing 0.875 0.035 30,000 75,000 6,522 1,630 2,609 2,316L
SS A249 Tubing 0.875 0.049 30,000 75,000 9,459 2,365 3,784 3,172
SS A249 Tubing 0.875 0.065 30,000 75,000 13,087 3,272 5,235 4,126
SS A249 Tubing 0.875 0.083 30,000 75,000 17,560 4,390 7,024 5,152
SS A249 Tubing 0.875 0.095 30,000 75,000 20,803 5,201 8,321 5,807
SS A249 Tubing 0.875 0.109 30,000 75,000 24,886 6,221 9,954 6,543
SS A249 Tubing 0.875 0.120 30,000 75,000 28,346 7,087 11,339 7,100
SS A249 Tubing 1.000 0.028 30,000 75,000 4,449 1,112 1,780 1,633
SS A249 Tubing 1.000 0.035 30,000 75,000 5,645 1,411 2,258 2,027
SS A249 Tubing 1.000 0.049 30,000 75,000 8,149 2,037 3,259 2,796
SS A249 Tubing 1.000 0.065 30,000 75,000 11,207 2,802 4,483 3,647
SS A249 Tubing 1.000 0.083 30,000 75,000 14,928 3,732 5,971 4,567
SS A249 Tubing 1.000 0.095 30,000 75,000 17,593 4,398 7,037 5,159
SS A249 Tubing 1.000 0.109 30,000 75,000 20,908 5,227 8,363 5,827
SS A249 Tubing 1.000 0.120 30,000 75,000 23,684 5,921 9,474 6,336
SS A249 Tubing 1.000 0.134 30,000 75,000 27,459 6,865 10,984 6,963
SS A249 Tubing 1.250 0.035 30,000 75,000 4,449 1,112 1,780 1,633
SS A249 Tubing 1.250 0.049 30,000 75,000 6,380 1,595 2,552 2,260
SS A249 Tubing 1.250 0.065 30,000 75,000 8,705 2,176 3,482 2,958
SS A249 Tubing 1.250 0.083 30,000 75,000 11,485 2,871 4,594 3,719
SS A249 Tubing 1.250 0.095 30,000 75,000 13,443 3,361 5,377 4,213
SS A249 Tubing 1.250 0.109 30,000 75,000 15,843 3,961 6,337 4,776
SS A249 Tubing 1.250 0.120 30,000 75,000 17,822 4,455 7,129 5,207
SS A249 Tubing 1.250 0.134 30,000 75,000 20,468 5,117 8,187 5,742
SS A249 Tubing 1.500 0.035 30,000 75,000 3,671 918 1,469 1,367
SS A249 Tubing 1.500 0.049 30,000 75,000 5,243 1,311 2,097 1,896
SS A249 Tubing 1.500 0.065 30,000 75,000 7,117 1,779 2,847 2,487
SS A249 Tubing 1.500 0.083 30,000 75,000 9,333 2,333 3,733 3,136
SS A249 Tubing 1.500 0.095 30,000 75,000 10,878 2,719 4,351 3,559
SS A249 Tubing 1.500 0.109 30,000 75,000 12,754 3,188 5,101 4,043
SS A249 Tubing 1.500 0.120 30,000 75,000 14,286 3,571 5,714 4,416
SS A249 Tubing 1.500 0.134 30,000 75,000 16,315 4,079 6,526 4,881
SS A249 Tubing 1.500 0.148 30,000 75,000 18,439 4,610 7,375 5,336
SS A249 Tubing 1.750 0.035 30,000 75,000 3,125 781 1,250 1,176
SS A249 Tubing 1.750 0.049 30,000 75,000 3,864 966 1,546 1,434
SS A249 Tubing 1.750 0.065 30,000 75,000 6,019 1,505 2,407 2,146
SS A249 Tubing 1.750 0.083 30,000 75,000 7,860 1,965 3,144 2,711
SS A249 Tubing 1.750 0.095 30,000 75,000 9,135 2,284 3,654 3,080
SS A249 Tubing 1.750 0.109 30,000 75,000 10,672 2,668 4,249 3,504
SS A249 Tubing 1.750 0.120 30,000 75,000 11,921 2,980 4,768 3,832
SS A249 Tubing 1.750 0.134 30,000 75,000 13,563 3,391 5,425 4,242
SS A249 Tubing 1.750 0.148 30,000 75,000 15,268 3,817 6,107 4,645
SS A249 Tubing 1.750 0.165 30,000 75,000 17,430 4,357 6,972 5,124
SS A249 Tubing 2.000 0.035 30,000 75,000 2,720 680 1,088 1,032
SS A249 Tubing 2.000 0.049 30,000 75,000 3,864 966 1,546 1,434
SS A249 Tubing 2.000 0.065 30,000 75,000 5,214 1,303 2,086 1,887
SS A249 Tubing 2.000 0.083 30,000 75,000 6,788 1,697 2,715 2,387
SS A249 Tubing 2.000 0.095 30,000 75,000 7,873 1,968 3,149 2,715
SS A249 Tubing 2.000 0.109 30,000 75,000 9,175 2,294 3,670 3,092
SS A249 Tubing 2.000 0.120 30,000 75,000 10,227 2,557 4,091 3,384
SS A249 Tubing 2.000 0.134 30,000 75,000 11,605 2,901 4,642 3,751
SS A249 Tubing 2.000 0.148 30,000 75,000 13,028 3,257 5,211 4,111
SS A249 Tubing 2.000 0.165 30,000 75,000 14,820 3,705 5,928 4,542
ASTM A249 STAINLESS STEEL TUBE TOLERANCES

TOLERANCE FOR ASTM A249 WELDED TUBE


OD Size
Inches
Tolerances, Inches
OD,
Inches
Wall
Cut
Length (a), In.



ASTM A249 tube

Less than 1
±0.004
All Sizes
± 10%
+1/8–0
ASTM A249 Tube
1 to 1-1/2
±0.006
ASTM A249 Tube
Over 1-1/2 to 2
±0.008
ASTM A249 Tube
Over 2 to 2-1/2
±0.010
+3/16–0
ASTM A249 Tube
Over 2-1/2 to 3
±0.012
ASTM A249 Tube
Over 3 to 4
±0.015
ASTM A249 Tube
Over 4 to 5
+0.015
– 0.025

(a) For lengths 24 feet or less. Over 24 feet add 1/8 inch per 10 feet to 1/2 inch maximum tolerance. Specification size range: 1/2 inch to 5 inch OD x 0.015 to 0.320 minimum walls.

Tests per ASTM A249

  • Flatten H=((1+0.09)t) divided by (0.09+t/D)
  • Flange
  • Reverse bend
  • Hardness: Rockwell B90 maximum
  • Yield Strength: “L” grades 25,000 psi minimum. Other grades
    30,000 psi minimum
  • Tensile Strength: “L” grades 70,000 psi minimum. Other grades
    75,000 psi minimum
  • Elongation in 2 inch = 56t+17.50
  • Hydrotest: P=2 St/D, S=16,000 or 24,000 psi maximum if ordered
  • Alternate: Non-destructive electrical test permitted unless order specifies test to be used. Test to A450.


DIAMETER TOLERANCE ASTM A249 TUBE

NPS ASTM A249 Tube OD Tolerance
+ –
inch mm inch mm
1/8~1 1 /2
> 1 1 /2~4
> 4~8
> 8~18
> 18~26
> 26~34
> 34~48 		1/64(0.015)
1/32(0.031)
1/16(0.062)
3/32(0.093)
1/8(0.125)
5/32(0.156)
3/16(0.187) 		0.4
0.8
1.6
2.4
3.2
4.0
4.8 		1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031) 		0.8
0.8
0.8
0.8
0.8
0.8
0.8
WALL THICKNESS TOLERANCE ASTM A249 TUBES
NPS ASTM A249 Tube Tolerance, %
+ –
1/8-2 1 /2 20.0 12.5
3~18, t/D≤ 5% 22.5 12.5
3~18, t/D> 5% 15.0 12.5
≥ 20, welded 17.5 12.5
≥ 20, seamless, t/D≤ 5% 22.5 12.5
≥ 20, seamless, t/D> 5% 15.0 12.5

ASTM A249 STAINLESS STEEL TUBE AVAILABLE EX-STOCK

1/8″-15/16″, 1″-1-7/8″, 2″-3-3/4″, 4″-7″, 10″-14″

  • ASTM A249 Tube can be cut to size or polished per customer specification.
  • ASTM A249 Tube is stocked in 17′ to 24′ R/L sections. Longer lengths can be made to order.
Nominal OD / Wall Nominal ID Nominal WT / FT Grade
1/8″ x .010 .105 .0126 304 / 304L
316 / 316L
1/8″ x .012 .101 .0149 304 / 304L
1/8″ x .016 .093 .0191 304 / 304L
316 / 316L
1/8″ x .020 .085 .0231 304 / 304L
316 / 316L
1/8″ x .028 .069 .0298 304 / 304L
316 / 316L
1/8″ x .035 .055 .0346 304 / 304L
316 / 316L
321
5/32″ x .016 .124 .0246 304 / 304L
5/32″ x .020 .116 .0299 304 / 304L
316 / 316L
5/32″ x .028 .100 .0394 304 / 304L
316 / 316L
5/32″ x .035 .086 .0456 304 / 304L
3/16″ x .010 .168 .0195 304 / 304L
316 / 316L
3/16″ x .016 .156 .0302 304 / 304L
3/16″ x .020 .148 .0369 304 / 304L
316 / 316L
3/16″ x .028 .132 .0492 304 / 304L
316 / 316L
3/16″ x .035 .118 .0589 304 / 304L
316 / 316L
321
3/16″ x .049 .090 .0749 304 / 304L
316 / 316L
1/4″ x .010 .230 .0272 304 / 304L Back to Top
316 / 316L
1/4″ x .016 .218 .0411 304 / 304L
316 / 316L
1/4″ x .020 .210 .0506 304 / 304L
316 / 316L
1/4″ x .022 .206 .0552 304 / 304L
1/4″ x .028 .194 .0683 304 / 304L
316 / 316L
321
1/4″ x .035 .180 .0827 304 / 304L
316 / 316L
321
1/4″ x .049 .152 .1083 304 / 304L
316 / 316L
1/4″ x .065 .120 .1322 304 / 304L
316 / 316L
1/4″ x .083 .084 .1524 304 / 304L
316 / 316L
5/16″ x .020 .273 .0643 304 / 304L
316 / 316L
321
5/16″ x .028 .257 .0876 304 / 304L
316 / 316L
321
5/16″ x .035 .243 .1068 304 / 304L
316 / 316L
5/16″ x .049 .215 .1420 304 / 304L
316 / 316L
5/16″ x .065 .183 .1769 304 / 304L
316 / 316L
5/16″ x .083 .144 .2095 304 / 304L
3/8″ x .010 .355 .0402 304 / 304L
3/8″ x .016 .343 .0631 304 / 304L
3/8″ x .020 .335 .0781 304 / 304L
316 / 316L
321
3/8″ x .028 .319 .1068 304 / 304L
316 / 316L
3/8″ x .035 .305 .1309 304 / 304L
316 / 316L
321
3/8″ x .049 .277 .1757 304 / 304L
316 / 316L
321
3/8″ x .065 .245 .2216 304 / 304L
316 / 316L
3/8″ x .083 .209 .2666 304 / 304L
316 / 316L
3/8″ x .095 .185 .2926 304 / 304L
316 / 316L
3/8″ x .109 .157 .3189 304 / 304L
3/8″ x .120 .135 .3366 304 / 304L
7/16″ x .020 .398 .0918 304 / 304L Back to Top
7/16″ x .028 .382 .1261 304 / 304L
316 / 316L
7/16″ x .035 .368 .1549 304 / 304L
316 / 316L
7/16″ x .049 .340 .2094 304 / 304L
316 / 316L
7/16″ x .065 .308 .2663 304 / 304L
316 / 316L
7/16″ x .083 .272 .3236 304 / 304L
7/16″ x .095 .248 .3579 304 / 304L
7/16″ x .120 .198 .4191 304 / 304L
1/2″ x .016 .468 .0851 304 / 304L
1/2″ x .020 .460 .1056 304 / 304L
316 / 316L
321
1/2″ x .028 .444 .1453 304 / 304L
316 / 316L
321
1/2″ x .035 .430 .1790 304 / 304L
316 / 316L
321
1/2″ x .049 .402 .2430 304 / 304L
316 / 316L
321
1/2″ x .065 .370 .3110 304 / 304L
316 / 316L
1/2″ x .083 .334 .3807 304 / 304L
316 / 316L
1/2″ x .095 .417 .4232 304 / 304L
316 / 316L
1/2″ x .109 .282 .4688 304 / 304L
1/2″ x .120 .260 .5016 304 / 304L
316 / 316L
9/16″ x .028 .507 .1646 304 / 304L Back to Top
316 / 316L
9/16″ x .035 .493 .2030 304 / 304L
316 / 316L
9/16″ x .049 .465 .2767 316 / 316L
321
9/16″ x .065 .433 .3557 304 / 304L
316 / 316L
9/16″ x .083 .397 .4377 304
316 / 316L
9/16″ x .120 .323 .5841 304 / 304L
5/8″ x .020 .585 .1331 304 / 304L
316 / 316L
5/8″ x .028 .569 .1838 304 / 304L
316 / 316L
5/8″ x .035 .555 .2271 304 / 304L
316 / 316L
321
5/8″ x .049 .527 .3104 304 / 304L
316 / 316L
321
5/8″ x .065 .495 .4004 304
316 / 316L
5/8″ x .083 .459 .4948 304
316 / 316L
5/8″ x .095 .435 .5538 304 / 304L
316 / 316L
5/8″ x .120 .385 .6666 304 / 304L
316 / 316L
11/16″ x .035 .618 .2562 304 / 304L
316 / 316L
11/16″ x .049 .590 .3441 304 / 304L
316 / 316L
11/16″ x .065 .558 .4451 304 / 304L
316 / 316L
3/4″ x .028 .694 .2223 304 / 304L Back to Top
316 / 316L
3/4″ x .035 .680 .2752 304 / 304L
316 / 316L
321
3/4″ x .049 .652 .3778 304 / 304L
316 / 316L
321
3/4″ x .065 .620 .4897 304 / 304L
316 / 316L
317/L
321
3/4″ x .083 .584 .6089 304
316 / 316L
3/4″ x .109 .532 .7685 304 / 304L
316 / 316L
3/4″ x .120 .510 .8316 304 / 304L
316 / 316L
13/16″ x .035 .742 .2414 304 / 304L
316 / 316L
13/16″ x .049 .714 .4112 304 / 304L
13/16″ x .065 .682 .5341 304
7/8″ x .028 .819 .2609 304 / 304L
7/8″ x .035 .805 .3234 304 / 304L
316 / 316L
7/8″ x .049 .777 .4452 304 / 304L
316 / 316L
7/8″ x .065 .745 .5791 304 / 304L
316 / 316L
7/8″ x .083 .709 .7231 304 / 304L
316 / 316L
7/8″ x .095 .685 .8151 304 / 304L
316 / 316L
7/8″ x .120 .635 .9966 304 / 304L
316 / 316L
15/16″ x .065 .808 .6242 304 / 304L Back to Top
316 / 316L
1″ x .020 .960 .2156 304 / 304L
1″ x .028 .944 .2993 304 / 304L
316 / 316L
321
1″ x .035 .930 .3715 304 / 304L
316 / 316L
321
1″ x .049 .902 .5126 304 / 304L
316 / 316L
1″ x .065 .870 .6685 304 / 304L
316 / 316L
321
1″ x .083 .834 .8372 304 / 304L
316 / 316L
321
1″ x .095 .810 .9457 304 / 304L
316 / 316L
1″ x .109 .782 1.0683 304 / 304L
316 / 316L
321
1″ x .120 .760 1.1616 304 / 304L
316 / 316L
1-1/16″ x .035 .992 .3954 304 / 304L
316 / 316L
1-1/8″ x .035 .880 .4196 304 / 304L
316 / 316L
1-1/8″ x .049 1.027 .5799 304 / 304L
316 / 316L
1-1/8″ x .065 .995 .7579 304 / 304L
316 / 316L
1-1/8″ x .083 .959 .9513 304 / 304L
316 / 316L
1-1/8″ x .095 .935 1.0763 304 / 304L
1-1/8″ x .120 .885 1.3266 304 / 304L
316 / 316L
1-3/16″ x .035 1.118 .4439 304 / 304L
1-3/16″ x .049 1.090 .6139 304 / 304L
1-3/16″ x .065 1.058 .8029 304 / 304L
316 / 316L
1-3/16″ x .095 .998 1.1422 304 / 304L
316 / 316L
1-3/16″ x .120 .948 1.4098 304 / 304L
1-1/4″ x .020 1.210 .6473 304 / 304L Back to Top
1-1/4″ x .028 1.194 .3763 304 / 304L
321
1-1/4″ x .035 1.180 .4677 304 / 304L
316 / 316L
321
1-1/4″ x .049 1.152 .6473 304 / 304L
316 / 316L
321
1-1/4″ x .065 1.120 .8473 304 / 304L
316 / 316L
321
1-1/4″ x .083 1.084 1.0655 304 / 304L
316 / 316L
1-1/4″ x .095 1.060 1.2070 304 / 304L
316 / 316L
1-1/4″ x .109 1.032 1.3681 304 / 304L
316 / 316L
1-1/4″ x .120 1.010 1.4916 304 / 304L
316 / 316L
321
1-5/16″ x .065 1.182 .8916 304 / 304L
1-5/16″ x .120 1.072 1.5734 304 / 304L
1-3/8″ x .035 1.305 .5159 304 / 304L
1-3/8″ x .049 1.277 .7147 304 / 304L
316 / 316L
1-3/8″ x .065 1.245 .9366 304 / 304L
316 / 316L
1-3/8″ x .083 1.209 1.1796 304 / 304L
1-3/8″ x .095 1.185 1.3376 304 / 304L
1-3/8″ x .120 1.135 1.6566 316 / 316L
1-1/2″ x .028 1.444 .4533 304 / 304L Back to Top
321
1-1/2″ x .035 1.430 .5640 304 / 304L
316 / 316L
321
1-1/2″ x .049 1.402 .7821 304 / 304L
316 / 316L
321
1-1/2″ x .065 1.370 1.0260 304 / 304L
316 / 316L
321
1-1/2″ x .083 1.334 1.2937 304 / 304L
316 / 316L
321
1-1/2″ x .095 1.310 1.4682 304 / 304L
316 / 316L
1-1/2″ x .109 1.282 1.6678 304 / 304L
316 / 316L
1-1/2″ x .120 1.260 1.8216 304 / 304L
316 / 316L
1-1/2″ x .134 1.232 2.0135 304 / 304L
316 / 316L
1-1/2″ x .156 1.188 2.3063 304 / 304L
316 / 316L
1-5/8″ x .049 1.527 .8494 304 / 304L
316 / 316L
1-5/8″ x .065 1.495 1.1154 304 / 304L
316 / 316L
321
1-5/8″ x .083 1.495 1.4078 304 / 304L
1-5/8″ x .095 1.435 1.5989 304 / 304L
1-5/8″ x .120 1.385 1.9866 304 / 304L
316 / 316L
1-3/4″ x .028 1.694 6.5304 304 / 304L Back to Top
316 / 316L
1-3/4″ x .035 1.680 .6602 304 / 304L
316 / 316L
321
1-3/4″ x .049 1.652 .9168 304 / 304L
316 / 316L
321
1-3/4″ x .065 1.620 1.2048 304 / 304L
316 / 316L
321
1-3/4″ x .083 1.584 1.5220 304 / 304L
316 / 316L
1-3/4″ x .095 1.560 1.7295 304 / 304L
316 / 316L
1-3/4″ x .109 1.532 1.9676 304 / 304L
1-3/4″ x .120 1.510 2.1516 304 / 304L
316 / 316L
1-7/8″ x .035 1.805 .7084 304 / 304L
1-7/8″ x .049 1.777 .9842 304 / 304L
316 / 316L
321
1-7/8″ x .065 1.745 1.2941 304 / 304L
316 / 316L
1-7/8″ x .095 1.685 1.8601 304 / 304L
1-7/8″ x .120 1.635 2.3166 304 / 304L
316 / 316L Back to Top
2″ x .035 1.930 .7565 304 / 304L
316 / 316L
2″ x .049 1.902 1.0516 304 / 304L
316 / 316L
2″ x .083 1.834 1.7502 304 / 304L
316 / 316L
2″ x .095 1.810 1.9907 304 / 304L
316 / 316L
2″ x .109 1.782 2.2673 304 / 304L
316 / 316L
2″ x .120 1.760 2.4816 304 / 304L
316 / 316L
2″ x .134 1.732 2.7505 304 / 304L
2″ x .188 1.624 3.7473 304 / 304L
2-1/8″ x .035 2.055 .8046 304 / 304L
2-1/8″ x .049 2.027 1.1190 304 / 304L
2-1/8″ x .065 1.995 1.4729 304 / 304L
316 / 316L
2-1/8″ x .083 1.959 1.8644 304 / 304L
2-1/8″ x .095 1.935 2.1214 304 / 304L
2-1/8″ x .120 1.885 2.6466 304 / 304L
2-1/4″ x .035 2.180 .8528 304 / 304L
321
2-1/4″ x .049 2.152 1.1863 304 / 304L
316 / 316L
321
2-1/4″ x .065 2.120 1.5623 304 / 304L
316 / 316L
321
2-1/4″ x .083 2.084 1.9785 304 / 304L
316 / 316L
2-1/4″ x .095 2.060 2.2520 304 / 304L
2-1/4″ x .120 2.010 2.8117 304 / 304L
316 / 316L
2-3/8″ x .035 2.305 .9009 304 / 304L
2-3/8″ x .049 2.277 1.2537 304 / 304L
2-3/8″ x .065 2.245 1.6517 304 / 304L
316 / 316L
2-3/8″ x .083 2.209 2.0926 304 / 304L
316 / 316L
2-3/8″ x .120 2.135 2.9767 304 / 304L
2-1/2″ x .035 2.430 .9490 304 / 304L Back to Top
316 / 316L
321
2-1/2″ x .049 2.402 1.3211 304 / 304L
316 / 316L
321
2-1/2″ x .065 2.370 1.7410 304 / 304L
316 / 316L
321
2-1/2″ x .083 2.334 2.2068 304 / 304L
316 / 316L
2-1/2″ x .095 2.310 2.5133 304 / 304L
321
2-1/2″ x .109 2.282 2.8668 304 / 304L
2-1/2″ x .120 2.260 3.1417 304 / 304L
316 / 316L
2-5/8″ x .035 2.555 .9972 304 / 304L
2-5/8″ x .049 2.572 1.3885 304 / 304L
2-5/8″ x .065 2.495 .9971 304 / 304L
316 / 316L
2-5/8″ x .083 2.459 2.3208 304 / 304L
2-5/8″ x .120 2.385 3.3067 304 / 304L
316 / 316L
2-3/4″ x .035 2.680 1.0453 304 / 304L
321
2-3/4″ x .049 2.652 1.4558 304 / 304L
321
2-3/4″ x .065 2.620 1.9198 304 / 304L
316 / 316L
2-3/4″ x .083 2.584 2.4350 304 / 304L
316 / 316L
2-3/4″ x .095 2.560 2.7745 304 / 304L
2-3/4″ x .109 2.532 2.4350 304 / 304L
2-3/4″ x .120 2.510 3.4717 304 / 304L
316 / 316L
2-7/8″ x .065 2.745 2.0092 304 / 304L
316 / 316L
2-7/8″ x .120 2.635 3.6367 304 / 304L
3″ x .028 2.944 .9154 304 / 304L
321
3″ x .035 2.930 1.1415 304 / 304L
316 / 316L
321
3″ x .049 2.902 1.5906 304 / 304L
316 / 316L
321
3″ x .065 2.870 2.0986 304 / 304L
316 / 316L
321
3″ x .083 2.834 2.6633 304 / 304L
316 / 316L
3″ x .095 2.810 3.0358 304 / 304L
316 / 316L
3″ x .109 2.782 3.4664 304 / 304L
316 / 316L
3-1/2″ x .120 3.260 4.462 304 / 304L
316 / 316L
3-1/2″ x 1.000 1.500 27.500 304 / 304L
316 / 316L
3-3/4″ x .049 3.652 1.9948 304 / 304L
3-3/4″ x .065 3.620 2.635 304 / 304L
3-3/4″ x .083 3.584 3.3480 304 / 304L
4″ x .035 3.930 1.5265 304 / 304L
316 / 316L
321
4″ x .049 3.902 2.130 304 / 304L
316 / 316L
321
4″ x .065 3.870 2.814 304 / 304L
316 / 316L
321
4″ x .083 3.834 3.576 304 / 304L
316 / 316L
4″ x .095 3.810 4.081 304 / 304L
4″ x .109 3.782 4.665 304 / 304L
316 / 316L
4″ x .120 3.760 5.122 304 / 304L
316 / 316L
321
4″ x .134 3.732 5.699 304 / 304L Back to Top
316 / 316L
4-1/4″ x .065 4.120 2.9923 304 / 304L
4-1/4″ x .083 4.084 3.8045 304 / 304L
4-1/4″ x .120 4.010 5.452 304 / 304L
316 / 316L
4-1/2″ x .049 4.402 2.3991 304 / 304L
4-1/2″ x .065 4.370 3.171 304 / 304L
316 / 316L
4-1/2″ x .083 4.334 4.0327 304 / 304L
316 / 316L
4-1/2″ x .120 4.260 5.782 304 / 304L
316 / 316L
5″ x .049 4.902 2.6686 304 / 304L
316 / 316L
321
5″ x .065 4.870 3.529 304 / 304L
316 / 316L
5″ x .083 4.834 4.489 304 / 304L
316 / 316L
5″ x .095 4.810 5.1257 304 / 304L
5″ x .109 4.782 5.8643 304 / 304L
316 / 316L
5″ x .120 4.760 6.442 304 / 304L
316 / 316L
5″ x .134 4.732 7.172 304 / 304L
5-1/4″ x .120 5.010 6.7716 304 / 304L
316 / 316L
5-1/2″ x .065 5.370 3.8860 304 / 304L
316 / 316L
5-1/2″ x .083 5.334 4.9457 304 / 304L
5-1/2″ x .120 5.260 7.102 304 / 304L
316 / 316L
5-3/4″ x .065 5.620 4.0648 304 / 304L
5-3/4″ x .120 5.510 7.4316 304 / 304L
6″ x .035 5.930 2.2965 304 / 304L Back to Top
6″ x .049 5.902 3.2076 304 / 304L
316 / 316L
6″ x .065 5.870 4.244 304 / 304L
316 / 316L
321
6″ x .083 5.834 5.402 316 / 316L
6″ x .109 5.782 7.063 304 / 304L
316 / 316L
6″ x .120 5.760 7.762 304 / 304L
316 / 316L
6″ x .134 5.732 8.646 304 / 304L
316 / 316L
6″ x .188 5.624 12.019 304 / 304L
6″ x .250 5.500 15.813 304 / 304L
316 / 316L
6-1/4″ x .120 6.010 8.092 304 / 304L
316 / 316L
6-1/4″ x .188 5.874 12.536 304 / 304L
6-1/4″ x .250 5.750 16.500 304 / 304L
6-1/2″ x 0.65 6.370 4.601 304 / 304L
6-1/2″ x .120 6.260 8.422 304 / 304L
316 / 316L
6-1/2″ x .250 6.000 17.188 304 / 304L
6-3/4″ x .250 6.250 17.875 304 / 304L
7″ x .049 6.902 3.747 304 / 304L
7″ x .065 6.870 4.9585 304 / 304L
316 / 316L
10-1/4″ x .625 9.000 66.172 304 / 304L Back to Top
316 / 316L
10-1/4″ x .750 8.750 78.375 304 / 304L
316 / 316L
10-1/4″ x 1.000 8.250 101.750 304 / 304L
10-1/2″ x .250 10.000 28.188 304 / 304L
316 / 316L
10-1/2″ x .375 9.750 41.766 304 / 304L
10-1/2″ x .500 9.500 55.000 304 / 304L
316 / 316L
10-1/2″ x .625 9.250 67.891 304 / 304L
10-1/2″ x .750 9.000 80.438 304 / 304L
316 / 316L
10-1/2″ x 1.000 8.500 104.500 304 / 304L
316 / 316L
10-1/2″ x 1.500 7.500 148.500 304 / 304L
11″ x .188 10.624 22.359 304 / 304L
11″ x .250 10.500 29.562 304 / 304L
11″ x .375 10.250 43.828 304 / 304L
11″ x .500 10.000 57.750 304 / 304L
316 / 316L
11″ x .625 9.750 71.328 304 / 304L
11″ x .750 9.500 84.562 304 / 304L
316 / 316L
11″ x 1.000 9.000 110.000 304 / 304L
316 / 316L
11″ x 1.500 8.000 756.750 304 / 304L
11-1/2″ x .250 11.000 30.938 304 / 304L
11-1/2″ x .500 10.500 60.500 304 / 304L
316 / 316L
11-1/2″ x .750 10.000 88.688 304 / 304L
11-1/2″ x 1.000 9.500 115.500 304 / 304L
12″ x .065 11.870 8.534 304 / 304L Back to Top
12″ x .083 11.834 10.880 304 / 304L
12″ x .109 11.782 14.257 304 / 304L
316 / 316L
12″ x .120 11.760 15.682 304 / 304L
316 / 316L
12″ x .134 11.732 17.490 304 / 304L
316 / 316L
12″ x .188 11.624 24.427 304 / 304L
316 / 316L
321
12″ x .250 11.500 32.312 304 / 304L
316 / 316L
321
12″ x .375 11.250 47.953 304 / 304L
316 / 316L
12″ x .500 11.000 63.250 304 / 304L
316 / 316L
12″ x .625 10.750 78.203 304 / 304L
12″ x .750 10.500 92.812 304 / 304L
316 / 316L
12″ x 1.000 10.000 121.000 304 / 304L
316 / 316L
12″ x 1.250 9.500 147.812 304 / 304L
12″ x 1.500 9.000 173.250 304 / 304L
316 / 316L
12-1/4″ x .250 11.750 33.000 304 / 304L
12-1/2″ x .250 12.000 33.688 304 / 304L
12-1/2″ x .500 11.500 66.000 304 / 304L
12-1/2″ x .750 11.000 96.938 304 / 304L
316 / 316L
12-1/2″ x 1.000 10.500 126.500 304 / 304L
13″ x .250 12.500 35.062 304 / 304L
13″ x .500 12.000 68.750 304 / 304L
316 / 316L
13″ x .750 11.500 101.062 304 / 304L
13″ x 1.000 11.000 132.000 304 / 304L
316 / 316L
14″ x .109 13.782 16.655 304 / 304L
14″ x .120 13.760 18.322 304 / 304L
14″ x .134 13.732 20.438 304 / 304L
14″ x .250 13.500 37.812 304 / 304L
14″ x .500 13.000 74.250 304 / 304L
14″ x .750 12.500 109.312 304 / 304L
14″ x 1.000 12.000 143.000 304 / 304L
316 / 316L
ASTM A249 PROPERTIES

ASTM A249 MECHANICAL PROPERTIES

Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
º F(º C)
ASTM A249 Stainless TP304 Solution 1900 (1040) 75(515) 30(205) 35
ASTM A249 Stainless TP304L Solution 1900 (1040) 70(485) 25(170) 35
ASTM A249 Stainless TP316 Solution 1900(1040) 75(515) 30(205) 35
ASTM A249 Stainless TP316L Solution 1900(1040) 70(485) 25(170) 35

ASTM A249 EQUIVALENT

EN-standard
Steel no. k.h.s DIN 		EN-standard
Steel name 		SAE grade UNS
1.4307 X2CrNi18-9 304L S3043
1.4306 X2CrNi19-11 304L S30403
1.4311 X2CrNiN18-10 304LN S30453
1.4301 X5CrNi18-10 304 S30400
1.4948 X6CrNi18-11 304H S30409
1.4841 X22CrNi2520 310 S31000
1.4845 X 5 CrNi 2520 310S S31008
1.4541 X6CrNiTi18-10 321 S32100
1.4878 X12CrNiTi18-9 321H S32109
1.4404 X2CrNiMo17-12-2 316L S31603
1.4401 X5CrNiMo17-12-2 316 S31600
1.4406 X2CrNiMoN17-12-2 316LN S31653
1.4432 X2CrNiMo17-12-3 316L S31603
1.4435 X2CrNiMo18-14-3 316L S31603
1.4436 X3CrNiMo17-13-3 316 S31600
1.4571 X6CrNiMoTi17-12-2 316Ti S31635
1.4429 X2CrNiMoN17-13-3 316LN S31653
AVAILABLE STOCK OF ASTM A249 STAINLESS TUBE SUPPLIERS, ASTM A249 SS WELDED TUBE
Asme SA249 Welded SS Tubing ASTM A249 Welded Stainless Steel Tubing
ASTM A249 SS Welded Tube Supplier ASTM A249 Welded Cold Drawn Tube Supplier
Asme SA249 Stainless Steel Welded Tube Dealer ASTM A249 Stainless Steel Square Tube Supplier
Asme SA249 Stainless Steel Oval Tube Supplier ASTM A249 Stainless Steel Hollow Tube Exporter
Asme SA249 Stainless Steel Electropolished Tube ASTM A249 SS Rectangular Tube Supplier
Asme SA249 Seamless SS Ornamental Tube ASTM A249 SS Superheater Tube Manufacturer
Asme SA249 SS Hexagonal Tube Supplier ASTM A249 SS Round Tube Supplier
Asme SA249 Stainless Steel Super heater Tube ASTM A249 Stainless Steel Heat Exchnager Tube
Asme SA249 Seamless Color Coated Tube ASTM A249 SS Condenser Tube Suppliers
Asme SA249 Hot Rolled SS Tube Suppliers ASTM A249 Stainless Steel Boiler Tube Supplier
Asme SA249 SS Welded Tube Supplier ASTM A249 Stainless Steel Instrumentation Tube
Asme SA249 Stainless Steel Coil Tube Supplier ASTM A249 Type 304 Stainless Steel Tube Supplier
Asme SA249 Stainless Steel Capillary Tube Supplier ASTM A249 Schedule 40 SS Tube Supplier
Asme SA249 Stainless Steel U Bend Tube Supplier ASTM A249 Schedule 80 SS Tube Supplier
Asme SA249 Welded Tubing Supplier ASTM A249 Schedule 10 SS Tube Supplier
Asme SA249 Tubing Manufacturer in India ASTM A249 Sch 5 SS Tube Supplier
INOX ASTM A249 Tubing Supplier ASTM A249 Stainless Steel Seamless Tubing
Asme SA249 SS 304 Welded Tube Supplier ASTM A249 Welded Tube Manufacturer in India
Asme SA249 /ASME SA249 Tube Manufacturer in India ASTM A249/A249M Welded Tubing Supplier
Asme SA249 Bright Annealed Coil tube Supplier ASTM A249 High Pressure Tube Supplier
Asme SA249 Stainless Steel Slot Round Tube Supplier ASTM A249 Thin-Wall Stainless Steel Tube Exporter
Asme SA249 Welded Tube Supplier ASME SA249 Stainless Steel Tube Supplier
ASTM A249 STAINLESS STEEL TUBE PRICE LIST
  • ASTM A249 Stainless welded tube
    US $500-1000 / Ton (FOB Price)
  • TP304 welded steel tube
    US $800-1600 / Ton (FOB Price)
  • a249 welded tube
    US $1-100 / Piece (FOB Price)
  • ASTM A249 welded tube for Fluid Transportation
    US $500-820 / Ton (FOB Price)
  • satin No.4 No.8 astm a249 welded tube hot sale!!!
    US $2000-6500 / Ton (FOB Price)
  • astm a249 welded heat exchanger tube
    US $1500.00-$5000.00 / Kilogram (FOB Price)
  • a249 welded tube
    US $1.5-9 / Kilogram (FOB Price)
  • tp304 welded tube manufacturer
    US $850-2200 / Metric Ton (FOB Price)
  • ASTM A249 stainless welded steel tube
    US $850-2200 / Metric Ton (FOB Price)
  • austenitic welded tubes for high pressure
    US $2660-7680 / Ton (FOB Price)
  • coated Ni Stainless steel welded tube
    US $4400-9300 / Ton (FOB Price)
  • tp249 welded stainless steel tubes
    US $2500-4100 / Ton (FOB Price)
  • welded tube astm a249
    US $600-1200 / Ton (FOB Price)
  • stainless steel welded tube
    US $500-2000 / Ton (FOB Price)
  • TP304 Stainless welded Steel tubes with different sizes
    US $3.8-5 / Kilogram (FOB Price)
  • TP304 Stainless Steel welded tube
    US $500-2000 / Ton (FOB Price)
  • ASME SA249 welded tube
    US $1-9999 / Kilogram (FOB Price)
  • Prime quality astm a249 stainless steel welded tubes
    US $2000-3000 / Ton (FOB Price)
  • ASTM A249 cold drawn welded stainless tube
    US $40-120 / Kilogram (FOB Price)
  • cold drawn ASTM A249 welded stainless tube
    US $3000-5000 / Metric Ton (FOB Price)
  • High Precision Stainless Steel welded pipe/tube
    US $6000-15000 / Ton (FOB Price)
  • Prime quality stainless steel welded tube
    US $2000-3000 / Ton (FOB Price)
  • sa249 welded tube
    US $2100-2400 / Ton (FOB Price)
  • astm a249 ss boiler tube
    US $2000.00-$3000.00 / Ton (FOB Price)
  • a249 ss welded condenser tube
    US $1.5-9 / Kilogram (FOB Price)
  • asme sa249 stainless steel welded tube
    US $3000-6000 / Metric Ton (FOB Price)
  • 2 inch Stainless Steel welded tubes A249
    US $3400-11000 / Ton (FOB Price)
  • A249 stainless steel welded tube
    US $3000-8000 / Metric Ton (FOB Price)
ASTM A249 STAINLESS STEEL TUBES STOCK SUPPLY APPLICATIONS

These ASTM A249 stainless steel tube Suppliers in various countries in different grades are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

  • ASTM A249 Stainless Steel tube used for Oil and gas
  • ASTM A249 stainless steel tube for Chemical and petrochemical
  • ASTM A249 Stainless Steel tube used for Water/waste
  • ASTM A249 Welded Stainless Steel tube for Pulp and Paper
  • ASTM A249 Stainless Steel tubing for Process piping
  • ASTM A249 Welded Stainless Steel tube used for Pharmaceutical
  • ASTM A249 Stainless Steel tube applications for Food and beverage
  • ASTM A249 Stainless Steel tube applications in Mining
  • ASTM A249 Stainless steel welded tube used for Power generation
  • ASTM A249 Stainless steel tube application for Marine Industry
  • ASTM A249 Welded tube application for Fertilizers
  • ASTM A249 Stainless steel tube for Renewable energy

TRADERS OF ASTM A249 WELDED TUBE, ISO CERTIFIED ASTM A249 STAINLESS STEEL SEAMLESS TUBES MANUFACTURER IN INDIA, BUY ASTM A249 SS TUBES AT DISCOUNTED PRICE, GET ASTM A249 STAINLESS STEEL ERW TUBES FREE SAMPLE, ASTM A249 /A249M STAINLESS STEEL TUBE SUPPLIERS.
CHECK WELDED TUBE ASTM A249 TUBE TOLERANCES, ASTM A249 SS TUBING STOCKIST, EXPORT ASTM A249 COLD DRAW SEAMLESS TUBES IN MINIMUM QUANTITY, RELIABLE ASTM A249 STAINLESS STEEL SUPERHEATER TUBE SUPPLIERS IN MUMBAI.
