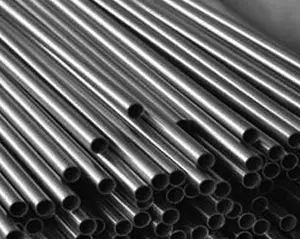

ASTM A269 Stainless Steel Tube

STCOKHOLDERS OF SEAMLESS TUBE ASTM A269, BUY ASTM A269 STAINLESS STEEL TUBING AT FACTORY PRICE

ASTM A269 SEAMLESS STAINLESS STEEL TUBING EXPORTERS, MANUFACTURERS OF ASTM A269 STAINLESS TUBE, HIGH-QUALITY ASTM A269 SS TUBING SUPPLIERS IN China

Energy Steel Industrial is one of well reputed ASTM A269 Tubing Suppliers, are the most versatile and widely used stainless steels. ASTM A269 Stainless Steel tube provides the best resistance to pitting and corrosion of any of the austenitic (300 series) stainless steels. It is extremely ductile, with excellent strength at elevated temperatures. It is ideal for hydraulic and instrumentation tubing in chemical, textile, and pulp and paper industries, and in marine environments.


The ASTM A269 Stainless Steel Tubing shall conform to the chemical composition requirements. Different mechanical test requirements that include, flange test, flaring test, hardness test, and reverse flattening test are presented. Finally, the hardness requirements for different grades of ASME SA269 Tubing are highlighted. Seamless Tube ASTM A269 can be produced with heavier wall thicknesses for mechanical applications. We stock a wide range of ASTM A269 Tubing industry standard sizes of both welded and seamless stainless steel tubes in ASTM a269. The ASME SA269 specification covers nominal wall thickness, welded and seamless austenitic steel tubing for general corrosion-resisting and low- or high-temperature service. Upon completion, all material shall:

  • shall be furnished in the heat-treated condition.
  • conform to the chemical composition requirements.
  • different mechanical test requirements that include, hardness test, flange test, flaring test, and reverse flattening test are presented.
  • shall be subjected to the non-destructive electric test or the hydrostatic test.

ASTM A269 SS Welded Tube features a weld bead on the inside diameter. 316 stainless steel provides the best resistance to pitting and corrosion of any of the austenitic (300 series) stainless steels. It is less expensive than seamless or welded tubing. Also, each ASTM a269 tubing Suppliers shall be subjected to the non-destructive electric test or the hydrostatic test. It is extremely ductile, with excellent strength at elevated temperatures. Energy Steel Industrial is well known distributors of ASTM A269 Stainless Tube in countries like China, Finland, Canada, Zimbabwe, South Africa, UK, Philippines, France, Italy, Sweden, Netherlands, Malaysia, Germany. Our offered ASTM A269 Specification covers nominal-wall-thickness, seamless and welded austenitic steel tubing for general corrosion-resisting and low- or high-temperature service. ASTM A269 Seamless Stainless Steel Tubing is manufactured using supreme grade alloying elements, thus ensuring hardness and chemical resistance. Energy Steel Industrial is China's largest independent stockholder of ASTM A269 stainless steel tube includes ASTM A269 TP304, ASTM A269 TP304L, ASTM A269 TP316, ASTM A269 and ASTM A269 TP201 in custom-made shapes and sizes. We have an attractive price range of ASTM A269 SS Tubing for Kolhapur, Jaipur, Gurgaon, Kolkata, Khopoli, Aurangabad, Indore, Faridabad, Nagpur, Raipur.


  • ASTM A269 TUBING
  • ASME SA269 TUBING
  • ASTM A269 SEAMLESS STAINLESS STEEL TUBING
ASTM A269 SPECIFICATION, ASTM A269 TUBING SPECIFICATION
A269 Stainless Steel Tubes Specification
ASTM A-249, A-268, A-269, A-270, A-554, A-688, A-778, DIN 17455, DIN 17456, 17457, DIN 17458 [Class 1] & Its equivalent ASME, DIN & EN Standard.
ASTM A269 Tubing Grades
202, 304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 316LN, 317L, 321, 321H, 347, 347H, 904L, SMO 254, ALLOY 254, 6MO, 6MOLY, UNS S31254 ETC.
Stainless Steel ASTM A269 Tubing Type
SEAMLESS / WELDED / ERW / EFW / COLD DRAW / HOT FINISH / COLD FINISH
ASTM A269 Stainless Steel Tube Outer Diameter Size
SEAMLESS - 6 MM OD TO 114.3 MM OD
WELDED / ERW- 10 MM TO 114.3 MM OD
ASTM A269 Austenitic Stainless Steel Tubing Wall Thickness
0.8 MM TO 4 MM WALL THICKNESS
ASTM A269 Austenitic SS Tubes Length
01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size.
SS ASTM A269 Seamless Tube Ends
Plain Ends / Beveled Ends
Stainless steel A269M Seamless Tube Delivery Conditions
As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw
SS ASTM A269 Welded Tube Coating
Electropolish, Mechanical Polish, Satin Finish, Passivated
A269 Welded Tube Other Testing
Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc
Stainless steel A269M Welded Tube Dimension
All Tubes are Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
SS ASTM A269 Round Tube Value Added Services
Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment / Annealed / Bright Annealed
A269 Round Tube Packaging
Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Stainless steel A269M Round Tube Shipment & Transportation
By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
ASTM A269 Tubing Material Test Certificate
Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

ASTM A269 TP304 TUBE
Exhibit excellent corrosion resistance to a wide range of corrosive environments.


ASTM A269 TP304L TUBE
Grade 304L exhibit excellent machinability and good weldability.


ASTM A269 TP316 TUBE
Austenitic stainless steel that's similar to 304 and 304L, but with the addition of molybdenum.


ASTM A269 TP316L TUBE
Exhibit excellent corrosion resistance to a wide range of corrosive environments.


ASTM A269 TP201 TUBE
ASTM A269 Grade 201 has good formability, corrosion resistance, and fabricability.


WE SUPPLY ASTM A269 SS WELDED TUBE IN MINIMUM QUANTITY, AVAILABLE ASTM A269 STAINLESS STEEL TUBE IN DIFFERENT SIZES, ASTM A269 UNS S30400 TUBES DISTRIBUTORS ASTM A269 SS SEAMLESS TUBE, ASTM A269 AUSTENITIC STAINLESS STEEL TUBING MANUFACTURERS IN INDIA

ASTM A269 TUBE SIZES
ASTM A269 Stainless steel tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a stainless steel seamless tube is manufactured in sizes from 1/2” to 8”NB according to current standards API, ASTM, and ASME.
TYPES-OF-ASTM-A269-STAINLESS-STEEL-TUBE

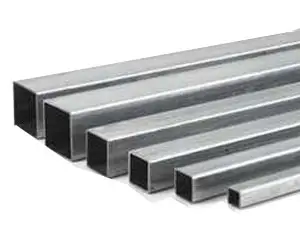

  • ASTM A269 SQUARE TUBE

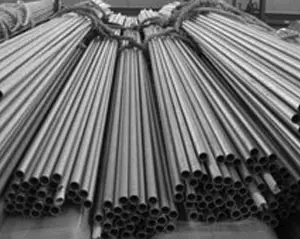

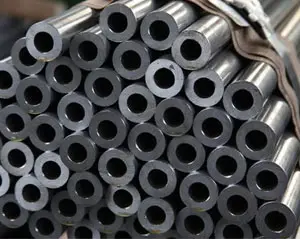

  • ASTM A269 SEAMLESS TUBE

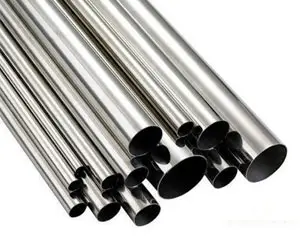

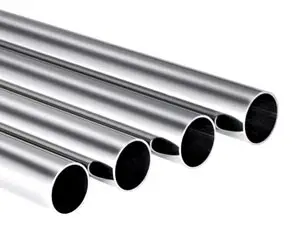

  • ASTM A269 ROUND TUBE

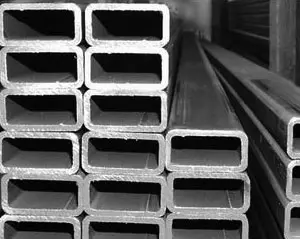

  • ASTM A269 RECTANGULAR TUBE

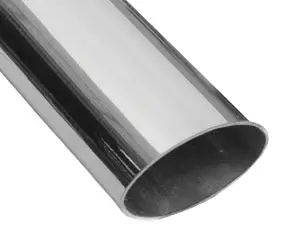

  • ASTM A269 OVAL TUBE

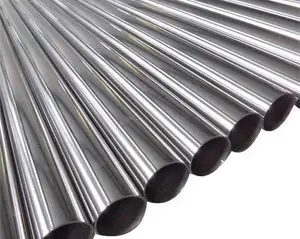

  • ASTM A269 POLISHED TUBE

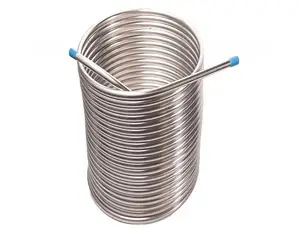

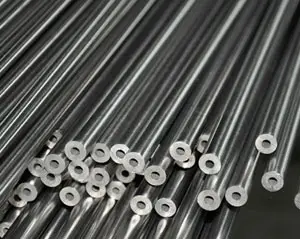

  • ASTM A269 CAPILLARY TUBE

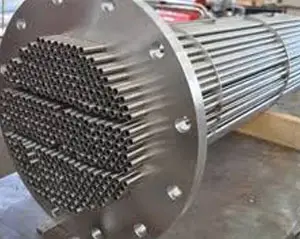

  • ASTM A269 HEAT EXCHANGER TUBE
  • ASTM A269 BOILER TUBE

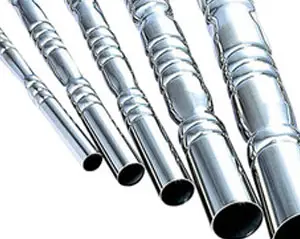

  • ASTM A269 DECORATIVE TUBE
  • ASTM A269 SANITARY TUBE
  • ASTM A269 HOLLOW TUBE
  • ASTM A269 EXHAUST TUBE
  • ASTM A269 CONDENSER TUBE

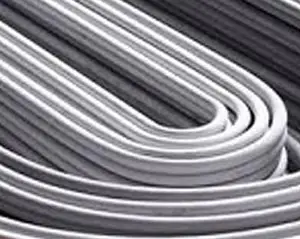

  • ASTM A269 U TUBE

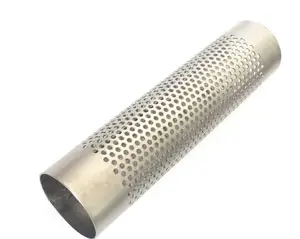

  • ASTM A269 PEROFRATED TUBE
ASTM A269 TUBE DIMENSIONS AND WEIGHTS
OD inches Ave. Wall inches D/t Ratio ID inches Tube Cross Sectional Area (in2) Internal Area (in2)
0.250 0.020 12.50 0.210 0.0145 0.0346
0.250 0.028 8.93 0.194 0.0195 0.0296
0.250 0.035 7.14 0.180 0.0236 0.0254
0.250 0.049 5.10 0.152 0.0309 0.0181
0.250 0.065 3.85 0.120 0.0378 0.0113
0.375 0.020 18.75 0.335 0.0223 0.0881
0.375 0.028 13.39 0.319 0.0305 0.0799
0.375 0.035 10.71 0.305 0.0374 0.0731
0.375 0.049 7.65 0.277 0.0502 0.0603
0.375 0.065 5.77 0.245 0.0633 0.0471
0.500 0.020 25.00 0.460 0.0302 0.1662
0.500 0.028 17.86 0.444 0.0415 0.1548
0.500 0.035 14.29 0.430 0.0511 0.1452
0.500 0.049 10.20 0.402 0.0694 0.1269
0.500 0.065 7.69 0.370 0.0888 0.1075
0.500 0.083 6.02 0.334 0.1087 0.0876
0.625 0.020 31.25 0.585 0.0380 0.2688
0.625 0.028 22.32 0.569 0.0525 0.2543
0.625 0.035 17.86 0.555 0.0649 0.2419
0.625 0.049 12.76 0.527 0.0887 0.2181
0.625 0.065 9.62 0.495 0.1144 0.1924
0.625 0.083 7.53 0.459 0.1413 0.1655
0.625 0.095 6.58 0.435 0.1582 0.1486
0.625 0.109 5.73 0.407 0.1767 0.1301
0.750 0.028 26.79 0.694 0.0635 0.3783
0.750 0.035 21.43 0.680 0.0786 0.3632
0.750 0.049 15.31 0.652 0.1079 0.3339
0.750 0.065 11.54 0.620 0.1399 0.3019
0.750 0.083 9.04 0.584 0.1739 0.2679
0.750 0.095 7.89 0.560 0.1955 0.2463
0.750 0.109 6.88 0.532 0.2195 0.2223
0.750 0.120 6.25 0.510 0.2375 0.2043
0.875 0.020 43.75 0.835 0.0537 0.5476
0.875 0.028 31.25 0.819 0.0745 0.5268
0.875 0.035 25.00 0.805 0.0924 0.5090
0.875 0.049 17.86 0.777 0.1272 0.4742
0.875 0.065 13.46 0.745 0.1654 0.4359
0.875 0.083 10.54 0.709 0.2065 0.3948
0.875 0.095 9.21 0.685 0.2328 0.3685
0.875 0.109 8.03 0.657 0.2623 0.3390
0.875 0.120 7.29 0.635 0.2846 0.316L7
1.000 0.028 35.71 0.944 0.0855 0.6999
1.000 0.035 28.57 0.930 0.1061 0.6793
1.000 0.049 20.41 0.902 0.1464 0.6390
1.000 0.065 15.38 0.870 0.1909 0.5945
1.000 0.083 12.05 0.834 0.2391 0.5463
1.000 0.095 10.53 0.810 0.2701 0.5153
1.000 0.109 9.17 0.782 0.3051 0.4803
1.000 0.120 8.33 0.760 0.3318 0.4536
1.000 0.134 7.46 0.732 0.3646 0.4208
1.250 0.035 35.71 1.180 0.1336 1.0936
1.250 0.049 25.51 1.152 0.1849 1.0423
1.250 0.065 19.23 1.120 0.2420 0.9852
1.250 0.083 15.06 1.084 0.316L3 0.9229
1.250 0.095 13.16 1.060 0.3447 0.8825
1.250 0.109 11.47 1.032 0.3907 0.8365
1.250 0.120 10.42 1.010 0.4260 0.8012
1.250 0.134 9.33 0.982 0.4698 0.7574
1.500 0.035 42.86 1.430 0.1611 1.6061
1.500 0.049 30.61 1.402 0.2234 1.5438
1.500 0.065 23.08 1.370 0.2930 1.4741
1.500 0.083 18.07 1.334 0.3695 1.3977
1.500 0.095 15.79 1.310 0.4193 1.3478
1.500 0.109 13.76 1.282 0.4763 1.2908
1.500 0.120 12.50 1.260 0.5202 1.2469
1.500 0.134 11.19 1.232 0.5750 1.1921
1.500 0.148 10.14 1.204 0.6286 1.1385
1.750 0.035 50.00 1.680 0.1886 2.2167
1.750 0.049 40.82 1.902 0.3003 2.8413
1.750 0.065 26.92 1.620 0.3441 2.0612
1.750 0.083 21.08 1.584 0.4347 1.9706
1.750 0.095 18.42 1.560 0.4939 1.9113
1.750 0.109 16.06 1.532 0.5619 1.8433
1.750 0.120 14.58 1.510 0.6145 1.7908
1.750 0.134 13.06 1.482 0.6803 1.7250
1.750 0.148 11.82 1.454 0.7449 1.6604
1.750 0.165 10.61 1.420 0.8216 1.5837
2.000 0.035 57.14 1.930 0.2161 2.9255
2.000 0.049 40.82 1.902 0.3003 2.8413
2.000 0.065 30.77 1.870 0.3951 2.7465
2.000 0.083 24.10 1.834 0.4999 2.6417
2.000 0.095 21.05 1.810 0.5685 2.5730
2.000 0.109 18.35 1.782 0.6475 2.4941
2.000 0.120 16.67 1.760 0.7087 2.4328
2.000 0.134 14.93 1.732 0.7855 2.3561
2.000 0.148 13.51 1.704 0.8611 2.2805
2.000 0.165 12.12 1.670 0.9512 2.1904
ASTM A269 TUBING SIZES, SEAMLESS TYPE 316L

ASTM A269
AVERAGE WALL

Size
OD, Inches
BW
Ga.
Wall
Dec-In.
ID
Weight
Lbs/Ft.
1/8
22
0.028
0.069
0.0290
20
0.035
0.055
0.0336
3/16
22
0.028
0.131
0.0478
1/4
25
0.020
0.210
0.0491
22
0.028
0.194
0.0664
21
0.032
0.187
0.0745
20
0.035
0.180
0.0804
18
0.049
0.152
0.1052
16
0.065
0.120
0.1284
5/16
20
0.035
0.242
0.1039
18
0.049
0.214
0.1382
16
0.065
0.182
0.1722
3/8
22
0.028
0.319
0.1038
20
0.035
0.305
0.1271
18
0.049
0.277
0.1706
16
0.065
0.245
0.2152
7/16
18
0.049
0.340
0.2036
1/2
25
0.020
0.460
0.1025
20
0.035
0.430
0.1738
18
0.049
0.402
0.2360
16
0.065
0.370
0.3020
5/8
20
0.035
0.555
0.2205
18
0.049
0.527
0.3014
16
0.065
0.495
0.3888
3/4
20
0.035
0.680
0.2673
18
0.049
0.652
0.3668
16
0.065
0.620
0.4755
14
0.083
0.584
0.5913
7/8
18
0.049
0.777
0.4323
16
0.065
0.745
0.5623
11
0.120
0.635
0.9676
1
20
0.035
0.930
0.3607
18
0.049
0.902
0.4977
16
0.065
0.870
0.6491
14
0.083
0.834
0.8129
11
0.120
0.760
1.1278
1-1/4
11
0.120
1.010
1.4480
ANSI PIPE SCH5 TO SCH40 CHART
Pipe Size O.D. Inches 5s TRUE 5 10s TRUE 10 20 30 40s & STD TRUE 40 60
1/8 0.405 0.35 0.049 0.049 0.068 0.068
0.1383 0.1863 0.1863 0.2447 0.2447
1/4 0.54 0.049 0.065 0.065 0.088 0.088
0.257 0.3297 0.3297 0.4248 0.4248
3/8 0.675 0.049 0.065 0.065 0.091 0.091
0.3276 0.4235 0.4235 0.5676 0.5676
1/2 0.84 0.065 0.065 0.083 0.083 0.109 0.109
0.5383 0.5383 0.671 0.671 0.851 0.851
3/4 1.05 0.065 0.065 0.083 0.083 0.113 0.113
0.6838 0.6838 0.8572 0.8572 1.131 1.131
1 1.315 0.065 0.065 0.109 0.19 0.133 0.133
0.8678 0.8678 1.404 1.404 1.679 1.679
1 1/4 1.66 0.065 0.065 0.109 0.109 0.14 0.14
1.107 1.107 1.806 1.806 2.273 2.273
1 1/2 1.9 0.065 0.065 0.109 0.109 0.145 0.145
1.274 1.274 2.638 2.638 2.718 2.718
2 2.375 0.065 0.065 0.109 0.109 0.154 0.154
1.604 1.604 2.638 2.638 3.653 3.653
2 1/2 2.875 0.083 0.083 0.12 0.12 0.203 0.203
2.475 2.475 3.531 3.531 5.793 5.793
3 3.5 0.083 0.083 0.12 0.12 0.216 0.216
3.029 3.029 4.332 4.332 7.576 7.576
3 1/2 4 0.083 0.083 0.12 0.12 0.226 0.226
3.472 3.472 4.97 4.97 9.109 9.109
4 4.5 0.083 0.083 0.12 0.12 0.237 0.237 0.281
3.915 3.915 5.613 5.613 10.79 10.79 12.66
4 1/2 5 0.247
12.53
5 5.563 0.109 0.109 0.134 0.134 0.258 0.258
6.349 6.349 7.77 7.77 14.62 14.62
6 6.625 0.109 0.109 0.134 0.134 0.28 0.28
7.585 7.585 9.289 9.289 18.97 18.97
7 7.625 0.301
23.57
8 8.625 0.109 0.109 0.148 0.148 0.25 0.277 0.322 0.322 0.406
9.914 9.914 13.4 13.4 22.36 24.7 28.55 28.55 35.64
9 9.625 0.342
33.9
10 10.75 0.134 0.134 0.165 0.165 0.25 0.307 0.365 0.365 0.5
15.19 15.19 18.65 18.65 28.04 34.24 40.48 40.48 54.74
11 11.75 0.375
45.55
12 12.75 0.156 0.165 0.18 0.18 0.25 0.33 0.375 0.406 0.562
21.07 22.18 24.2 24.2 33.38 43.77 49.56 53.53 73.16
14 14 0.156 0.188 0.25 0.312 0.375 0.375 0.437 0.593
23.06 27.73 36.71 45.68 54.57 54.57 63.67 84.91
16 16 0.165 0.188 0.25 0.312 0.375 0.375 0.5 0.656
27.9 31.75 42.05 52.36 62.58 62.58 82.77 107.5
18 18 0.165 0.188 0.25 0.312 0.437 0.375 0.562 0.75
31.43 35.76 47.39 59.03 82.06 70.59 104.8 138.2
20 20 0.188 0.218 0.25 0.375 0.5 0.375 0.593 0.812
39.78 46.05 52.73 78.6 104.1 78.6 122.9 166.4
24 24 0.218 0.25 0.25 0.375 0.562 0.375 0.687 0.968
55.37 63.41 63.41 94.62 140.8 94.62 171.2 238.1
26 26 0.312 0.5 0.375
85.6 136.2 102.6
28 28 0.312 0.5 0.625 0.375
92.26 146.8 182.7 110.6
30 30 0.25 0.312 0.312 0.5 0.625 0.375
79.43 98.93 98.93 157.5 196.1 118.6
32 32 0.312 0.5 0.625 0.375 0.688
105.6 168.2 209.4 126.7 230.1
34 34 0.312 0.5 0.625 0.375 0.688
112.3 178.9 222.8 134.7 244.8
36 36 0.312 0.625 0.375 0.75
118.9 236.1 142.7 282.3
40 40 0.375
158.7
42 42 0.375
166.7
48 48 0.375
190.7
ASTM A269 TUBE PRESSURE RATING

TUBE PRESSURE RATING FOR ASTM A269

OD inches Ave. Wall inches Min Yield Strength (PSI) Min Tensile Strength (PSI) Theoretical Burst Pressure * (PSI) Working Pressure (PSI) 25% of Burst Theoretical Yield Point ** (PSI) Collapse Pressure *** (PSI)
0.250 0.020 30,000 75,000 14,286 3,571 5,714 4,416
0.250 0.028 30,000 75,000 21,649 5,412 8,660 5,967
0.250 0.035 30,000 75,000 29,167 7,292 11,667 7,224
0.250 0.049 30,000 75,000 48,355 12,089 19,342 9,455
0.250 0.065 30,000 75,000 81,250 20,313 32,500 11,544
0.375 0.020 30,000 75,000 8,955 2,239 3,582 3,029
0.375 0.028 30,000 75,000 13,166 3,292 5,266 4,145
0.375 0.035 30,000 75,000 17,213 4,303 6,885 5,077
0.375 0.049 30,000 75,000 26,534 6,634 10,614 6,816
0.375 0.065 30,000 75,000 39,796 9,949 15,918 8,597
0.500 0.020 30,000 75,000 6,522 1,630 2,609 2,316L
0.500 0.028 30,000 75,000 9,459 2,365 3,784 3,172
0.500 0.035 30,000 75,000 12,209 3,052 4,884 3,906
0.500 0.049 30,000 75,000 18,284 4,571 7,313 5,316L
0.500 0.065 30,000 75,000 26,351 6,588 10,541 6,786
0.500 0.083 30,000 75,000 37,275 9,319 14,910 8,307
0.625 0.020 30,000 75,000 5,128 1,282 2,051 1,859
0.625 0.028 30,000 75,000 7,381 1,845 2,953 2,568
0.625 0.035 30,000 75,000 9,459 2,365 3,784 3,172
0.625 0.049 30,000 75,000 13,947 3,487 5,579 4,335
0.625 0.065 30,000 75,000 19,697 4,924 7,879 5,591
0.625 0.083 30,000 75,000 27,124 6,781 10,850 6,910
0.625 0.095 30,000 75,000 32,759 8,190 13,103 7,734
0.625 0.109 30,000 75,000 40,172 10,043 16,069 8,639
0.750 0.028 30,000 75,000 6,052 1,513 2,421 2,156
0.750 0.035 30,000 75,000 7,721 1,930 3,088 2,669
0.750 0.049 30,000 75,000 11,273 2,818 4,509 3,664
0.750 0.065 30,000 75,000 15,726 3,931 6,290 4,749
0.750 0.083 30,000 75,000 21,318 5,330 8,527 5,905
0.750 0.095 30,000 75,000 25,446 6,362 10,179 6,637
0.750 0.109 30,000 75,000 30,733 7,683 12,293 7,453
0.750 0.120 30,000 75,000 35,294 8,824 14,118 8,064
0.875 0.020 30,000 75,000 3,593 898 1,437 1,340
0.875 0.028 30,000 75,000 5,128 1,282 2,051 1,859
0.875 0.035 30,000 75,000 6,522 1,630 2,609 2,316L
0.875 0.049 30,000 75,000 9,459 2,365 3,784 3,172
0.875 0.065 30,000 75,000 13,087 3,272 5,235 4,126
0.875 0.083 30,000 75,000 17,560 4,390 7,024 5,152
0.875 0.095 30,000 75,000 20,803 5,201 8,321 5,807
0.875 0.109 30,000 75,000 24,886 6,221 9,954 6,543
0.875 0.120 30,000 75,000 28,346 7,087 11,339 7,100
1.000 0.028 30,000 75,000 4,449 1,112 1,780 1,633
1.000 0.035 30,000 75,000 5,645 1,411 2,258 2,027
1.000 0.049 30,000 75,000 8,149 2,037 3,259 2,796
1.000 0.065 30,000 75,000 11,207 2,802 4,483 3,647
1.000 0.083 30,000 75,000 14,928 3,732 5,971 4,567
1.000 0.095 30,000 75,000 17,593 4,398 7,037 5,159
1.000 0.109 30,000 75,000 20,908 5,227 8,363 5,827
1.000 0.120 30,000 75,000 23,684 5,921 9,474 6,336
1.000 0.134 30,000 75,000 27,459 6,865 10,984 6,963
1.250 0.035 30,000 75,000 4,449 1,112 1,780 1,633
1.250 0.049 30,000 75,000 6,380 1,595 2,552 2,260
1.250 0.065 30,000 75,000 8,705 2,176 3,482 2,958
1.250 0.083 30,000 75,000 11,485 2,871 4,594 3,719
1.250 0.095 30,000 75,000 13,443 3,361 5,377 4,213
1.250 0.109 30,000 75,000 15,843 3,961 6,337 4,776
1.250 0.120 30,000 75,000 17,822 4,455 7,129 5,207
1.250 0.134 30,000 75,000 20,468 5,117 8,187 5,742
1.500 0.035 30,000 75,000 3,671 918 1,469 1,367
1.500 0.049 30,000 75,000 5,243 1,311 2,097 1,896
1.500 0.065 30,000 75,000 7,117 1,779 2,847 2,487
1.500 0.083 30,000 75,000 9,333 2,333 3,733 3,136
1.500 0.095 30,000 75,000 10,878 2,719 4,351 3,559
1.500 0.109 30,000 75,000 12,754 3,188 5,101 4,043
1.500 0.120 30,000 75,000 14,286 3,571 5,714 4,416
1.500 0.134 30,000 75,000 16,315 4,079 6,526 4,881
1.500 0.148 30,000 75,000 18,439 4,610 7,375 5,336
1.750 0.035 30,000 75,000 3,125 781 1,250 1,176
1.750 0.049 30,000 75,000 3,864 966 1,546 1,434
1.750 0.065 30,000 75,000 6,019 1,505 2,407 2,146
1.750 0.083 30,000 75,000 7,860 1,965 3,144 2,711
1.750 0.095 30,000 75,000 9,135 2,284 3,654 3,080
1.750 0.109 30,000 75,000 10,672 2,668 4,269 3,504
1.750 0.120 30,000 75,000 11,921 2,980 4,768 3,832
1.750 0.134 30,000 75,000 13,563 3,391 5,425 4,242
1.750 0.148 30,000 75,000 15,268 3,817 6,107 4,645
1.750 0.165 30,000 75,000 17,430 4,357 6,972 5,124
2.000 0.035 30,000 75,000 2,720 680 1,088 1,032
2.000 0.049 30,000 75,000 3,864 966 1,546 1,434
2.000 0.065 30,000 75,000 5,214 1,303 2,086 1,887
2.000 0.083 30,000 75,000 6,788 1,697 2,715 2,387
2.000 0.095 30,000 75,000 7,873 1,968 3,149 2,715
2.000 0.109 30,000 75,000 9,175 2,294 3,670 3,092
2.000 0.120 30,000 75,000 10,227 2,557 4,091 3,384
2.000 0.134 30,000 75,000 11,605 2,901 4,642 3,751
2.000 0.148 30,000 75,000 13,028 3,257 5,211 4,111
2.000 0.165 30,000 75,000 14,820 3,705 5,928 4,542
ASTM A269 STAINLESS STEEL TUBE TOLERANCES

DIAMETER TOLERANCE ASTM A269 TUBE

NPS ASTM A269 Tube OD Tolerance
+ –
inch mm inch mm
1/8~1 1 /2
> 1 1 /2~4
> 4~8
> 8~18
> 18~26
> 26~34
> 34~48 		1/64(0.015)
1/32(0.031)
1/16(0.062)
3/32(0.093)
1/8(0.125)
5/32(0.156)
3/16(0.187) 		0.4
0.8
1.6
2.4
3.2
4.0
4.8 		1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031)
1/32(0.031) 		0.8
0.8
0.8
0.8
0.8
0.8
0.8

WALL THICKNESS TOLERANCE ASTM A269 TUBES

NPS ASTM A269 Tube Tolerance, %
+ –
1/8-2 1 /2 20.0 12.5
3~18, t/D≤ 5% 22.5 12.5
3~18, t/D> 5% 15.0 12.5
≥ 20, welded 17.5 12.5
≥ 20, seamless, t/D≤ 5% 22.5 12.5
≥ 20, seamless, t/D> 5% 15.0 12.5


ASTM A269 PROPERTIES
ASTM A269 STAINLESS STEEL TUBE CHEMICAL COMPOSITION

The below table shows the chemical composition of the used for ASTM A269 Stainless Steel Tubes:

ASTM A269 TUBE GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
ASTM A269 304 Tubing S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
ASTM A269 304L Tubing S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
ASTM A269 316 Tubing S31600 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
ASTM A269 316L Tubing S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0
ASTM A269 EQUIVALENT
EN-standard
Steel no. k.h.s DIN 		EN-standard
Steel name 		SAE grade UNS
1.4408 G-X 6 CrNiMo 18-10 316 S31600
1.4512 X6CrTi12 409 S40900
410 S41000
1.4310 X10CrNi18-8 301 S30100
1.4318 X2CrNiN18-7 301LN
1.4307 X2CrNi18-9 304L S3043
1.4306 X2CrNi19-11 304L S30403
1.4311 X2CrNiN18-10 304LN S30453
1.4301 X5CrNi18-10 304 S30400
1.4948 X6CrNi18-11 304H S30409
1.4303 X5CrNi18-12 305 S30500
X5CrNi30-9 312
1.4841 X22CrNi2520 310 S31000
1.4845 X 5 CrNi 2520 310S S31008
1.4541 X6CrNiTi18-10 321 S32100
1.4878 X12CrNiTi18-9 321H S32109
1.4404 X2CrNiMo17-12-2 316L S31603
1.4401 X5CrNiMo17-12-2 316 S31600
1.4406 X2CrNiMoN17-12-2 316LN S31653
1.4432 X2CrNiMo17-12-3 316L S31603
1.4435 X2CrNiMo18-14-3 316L S31603
1.4436 X3CrNiMo17-13-3 316 S31600
1.4571 X6CrNiMoTi17-12-2 316Ti S31635
1.4429 X2CrNiMoN17-13-3 316LN S31653
1.4438 X2CrNiMo18-15-4 317L S31703
1.4362 X2CrNi23-4 2304 S32304
1.4462 X2CrNiMoN22-5-3 2205 S31803/S32205
1.4501 X2CrNiMoCuWN25-7-4 J405 S32760
1.4539 X1NiCrMoCu25-20-5 904L N08904
1.4529 X1NiCrMoCuN25-20-7 N08926
1.4547 X1CrNiMoCuN20-18-7 254SMO S31254
AVAILABLE STOCK OF ASTM A269 TUBING SUPPLIERS, ASTM A269 SS SEAMLESS TUBE
STM A269 Austenitic Stainless Steel Tubes ASTM A269 Austenitic Stainless Steel Tubing
Stainless Steel ASTM A269 Seamless Tubing ASTM A269 Seamless Cold Drawn Tube
Seamless Stainless Steel ASTM A269 Tubing Stainless Steel Square Tubing
ASTM A269 Stainless Steel Oval Tubing Stainless Steel ASTM A269 Hollow Tubing
Stainless Steel ASTM A269 Seamless Electropolished Tubes ASTM A269 SS Rectangular Tubes
Seamless Stainless Steel Ornamental Tubes ASTM A269 Seamless Stainless Steel Tubing
Stainless Steel ASTM A269 Hexagonal Pipes Stainless Steel ASTM A269 Round Tube
ASTM A269 Stainless Steel Exhaust Tubes ASTM A269 Stainless Steel Heat Exchnager Tube
Seamless ASTM A269 Color Coated Tube Stainless Steel ASTM A269 Condenser Tube
ASTM A269 Hot Rolled seamless ss pipe ASTM A269 Stainless Steel Boiler Tube
Stainless Steel ASTM A269 Welded Tube Stainless Steel ASTM A269 Instrumentation Tube
ASTM A269 Stainless Steel Coil Tube Seamless Stainless Steel Tube ASTM A269
ASTM A269 Stainless Steel Capillary Tube Schedule 40 Stainless Steel Tube
Stainless Steel ASTM A269 U Bend Tube ASTM A269 Schedule 80 Stainless Steel Tube
ASTM A269 Welded Tubing ASTM A269 Schedule 10 Stainless Steel Tube
ASTM A269 Tubing ASTM A269 Sch 5 Stainless Steel Tube
SS ASTM A269 Slot Round Tubes ASTM A269 SS Electropolished Tubes
INOX ASTM A269 Tubing ASME SA269 Stainless Steel Seamless Tubing
ASME SA269 Welded Tubes ASME SA269 Seamless Tube
ASME SA269 / ASME SA 269 Tube ASME SA269 Stainless Steel Tubing
ASTM A269 Bright Annealed Coil tube ASTM A269 High Pressure Tube
SS ASTM A269 Slot Round Tubes Thin-Wall Stainless Steel Tube
ASTM A269 Seamless Tube ASTM A269 TP316L Stainless Steel Tube
ASTM A269 STAINLESS STEEL TUBE PRICE LIST
  • a269 seamless tubing
    US $1.5-9 / Kilogram (FOB Price)
  • asme sa269 seamless tube
    US $850-2200 / Metric Ton (FOB Price)
  • ASTM A269 stainless steel tubing
    US $500-1000 / Ton (FOB Price)
  • asme sa269 seamless steel tube
    US $800-1600 / Ton (FOB Price)
  • Seamless tube astm a269 /a269M
    US $1-100 / Piece (FOB Price)
  • ASTM A269 Seamless tube for Fluid Transportation
    US $500-820 / Ton (FOB Price)
  • satin No.4 No.8 ASTM A269 seamless tube hot sale!!!
    US $2000-6500 / Ton (FOB Price)
  • tp269 seamless stainless steel tubes
    US $2500-4100 / Ton (FOB Price)
  • seamless tube ASTM A269
    US $600-1200 / Ton (FOB Price)
  • stainless steel seamless tube astm a269
    US $500-2000 / Ton (FOB Price)
  • ASTM A269 stainless seamless steel tube
    US $850-2200 / Metric Ton (FOB Price)
  • astm a269 austenitic seamless tubes for high pressure
    US $2660-7680 / Ton (FOB Price)
  • coated Ni Stainless steel seamless tube astm a269
    US $4400-9300 / Ton (FOB Price)
  • tp316L stainless steel seamless tube
    US $3000-6000 / Metric Ton (FOB Price)
  • 2 inch Stainless Steel Seamless tubes A269 GR TP316L
    US $3400-11000 / Ton (FOB Price)
  • astm a269 / asme sa269 Stainless seamless Steel tubes with different sizes
    US $3.8-5 / Kilogram (FOB Price)
  • asme sa269 Stainless Steel Seamless tube
    US $500-2000 / Ton (FOB Price)
  • ASME SA269 seamless tube
    US $1-9999 / Kilogram (FOB Price)
  • Prime quality tp316L stainless steel seamless tube
    US $2000-3000 / Ton (FOB Price)
  • sa269 eamless tube
    US $2100-2400 / Ton (FOB Price)
  • A269 stainless steel seamless tube
    US $3000-8000 / Metric Ton (FOB Price)
  • Prime quality tp316L stainless steel seamless tubes
    US $2000-3000 / Ton (FOB Price)
  • ASTM A269 cold drawn seamless stainless tube
    US $40-120 / Kilogram (FOB Price)
  • cold drawn ASTM A269 seamless stainless tube
    US $3000-5000 / Metric Ton (FOB Price)
  • High Precision astm a269 Stainless Steel Seamless pipe/tube
    US $6000-15000 / Ton (FOB Price)
ASTM A269 STAINLESS STEEL TUBES STOCK SUPPLY APPLICATIONS

These ASTM A269 stainless steel tube grades are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

  • SS ASTM A269 Seamless Tube for Renewable energy
  • ASTM A269 Seamless Stainless Steel tube for Pulp and Paper
  • Stainless steel A269M Seamless Tube applications in Mining
  • ASTM A269 SS tube used for Water/waste
  • SS ASTM A269 Welded Tube for Process piping
  • A269 Welded Tube used for Pharmaceutical
  • Stainless steel A269M Welded Tube applications for Food and beverage
  • ASTM A269 SS tube used for Oil and gas
  • SS ASTM A269 Round Tube application for Marine Industry
  • A269 Round Tube used for Power generation
  • Stainless steel A269M Round Tube for Chemical and petrochemical
  • ASTM A269 Tubing application for Fertilizers

DEALERS OF ASTM A269 TUBE, ASTM A269 SEAMLESS TUBE, ASTM A269 WELDED TUBE TRADERS, GET FREE SAMPLE OF ASTM A269/ A269M STAINLESS STEEL TUBE, CHECK ASTM A269 STAINLESS WELDED TUBES SCHEDULE CHART, ASTM A269 STAINLESS STEEL ERW TUBES AT DISCOUNTED PRICE.
VISIT OUR ASTM A269 STAINLESS STEEL SEAMLESS TUBES FACTORY, PED APPROVED ASTM A269 SS TUBES MANUFACTURER, LOOKING FOR ASTM A269 COLD DRAW SEAMLESS TUBES ? ASTM A269 STAINLESS STEEL EXHAUST TUBE SUPPLIERS IN INDIA.
