Stainless Steel Capillary Tube

MANUFACTURERS OF 316 STAINLESS STEEL CAPILLARY TUBING, STAINLESS STEEL SEAMLESS CAPILLARY TUBING IN China AT BEST PRICE.

SUPPLIERS OF SS WELDED CAPILLARY TUBES, HUGE INVENTORY OF INDUSTRIAL CAPILLARY TUBES, 316 SS CAPILLARY TUBING MANUFACTURERS IN China.

Energy Steel Industrial is offering Stainless Steel Capillary Tube Suppliers are in small bore sizes and precise thickness are available as per the requirements of clients. It & is widely used in instrumentation Industries. SS 304 capillary tubes and 316 Stainless Steel Capillary Tubing are available in precise cut to lengths are also highly effective in a wide range of temperatures. SS Capillary Tubing are the preferred choice for most applications due to greater corrosion resistance and precision. Stainless steel 316 capillary tubing is generally used for high pressure applications.


Our offered Stainless Steel Seamless Capillary Tubing are mostly used for Hydraulic control lines, Liquid/ Gas Transportation Lines, Medical devices and equipment’s, Chromatography applications, Measurement devices, Remote thermometer systems Small precision stainless steel antenna, Watches, Car antenna tube, Laser engraving equipment etc. As a largest stockholder of SS Capillary Tubes includes grades Stainless Steel 304 Capillary Tube, Stainless Steel 304L Capillary Tube, Stainless Steel 316 Capillary Tube, Stainless steel 316L Capillary Tube and Stainless Steel 201 Capillary Tube those are used in various indutsrial applications. Energy Steel Industrial is one of the reputed exporter of Stainless Steel Capillary Tubing in countries like Malaysia, Philippines, Zimbabwe, Brisbane, UK, South Africa, Australia, UAE and Sydney.


We are specialises in the supply of high quality seamless capillary tubing in stainless steel 304 and 316 grades which are highly resistant to corrosion. SS Capillary Tubes sizes range from 0.30 mm to 8.00 mm. They can be availed in thin, standard or heavy wall.Stainless Steel Capillary Tubing diameters of refrigerant capillary tubes range from 0.30 mm to 31.75 mm O.D. And 0.06 mm to 1.65 mm thickness and the length ranges from 1.0 mm to 6.0 mm. We ensure the highest surface quality in all of our Stainless Steel Capillary Tubing. Energy Steel Industrial is PED approved manufacturer & Govt. of China recognized Export House and an ISO 9001 : 2008 accredited company. Our offered Stainless Steel 304 Capillary Tubes are cleaned, polished, passivated and are ready for immediate use. We are also well known SS 304 capillary tubes and Stainless Steel Capillary Tube Manufacturer in China. Buy 316 SS Capillary Tubing at affordable price in China from us as compare to market price in cities of China such as Aurangabad, Gurgaon, Indore, Khopoli, Kolhapur, Jaipur, Kolkata, Ahmedabad (Gujarat), Faridabad, Nagpur, Raipur.


  • STAINLESS STEEL CAPILLARY TUBE SUPPLIERS
  • SS 316L CAPILLARY TUBE
  • SS 304 CAPILLARY TUBE
STAINLESS STEEL CAPILLARY TUBE SPECIFICATION
Stainless Steel Capillary Tube Size Range 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
Thickness 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Wall Thickness 0.08 – 0.2 mm
Outside Diameter 0.3 –12.0 mm
Specification ASME / ASTM A213, ASTM A688 / A688M - 08, ASTM A803 / A803M, ASTM A556 / A556M, ASME SA556, ASME SA688
Material SS 304, SS 304L, SS 316, SS 316L
Finish Pickled, Polished, Bright Annealed, Electrolytic Polished
Form Round, Strait, Hydraulic etc.
Type As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed
Mill Test Certificate EN10204 3.1
Packing Sleeved, Ends Capped, Wooden Boxed
STAINLESS STEEL CAPILLARY TUBE PRICE, SS 304 / 316L CAPILLARY TUBE PRICE

check latest updated price of stainless steel Capillary Tube. Looking to buy Stainless Steel 304 Capillary Tube? Check our latest price of SS 304 Capillary Tube

EXPORTERS OF GLASS CAPILLARY TUBE, STAINLESS STEEL CAPILLARY TUBE MATERIAL DISTRIBUTORS, DEALERS OF 304 STAINLESS STEEL CAPILLARY TUBE, HUGE STOCK OF SS CAPILLARY TUBING, STAINLESS STEEL FLEXIBLE CAPILLARY TUBING WHOLESALERS.

TYPES-OF-STAINLESS-STEEL-CAPILLARY-TUBE-SUPPLIERS
  • STAINLESS STEEL CAPILLARY TUBE
  • SS 304L CAPILLARY TUBE
  • SS 316 CAPILLARY TUBE
  • STAINLESS STEEL 316L CAPILLARY TUBE
  • SS 201 CAPILLARY TUBE
  • SS SEAMLESS CAPILLARY TUBE
  • STAINLESS STEEL CAPILLARY TUBING
  • SS CAPILLARY TUBE
STAINLESS STEEL CAPILLARY TUBE SIZES
Stainless steel Capillary Tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a stainless steel Capillary Tube is manufactured according to current standards API, ASTM, and ASME. If required for special projects we can also supply large diameter Capillary Tubes.
DIMENSIONS AND WALL THICKNESS OF STAINLESS STEEL CAPILLARY TUBE
Gauge Outside Diameter Tolerance mm Regular Wall (RW) mm tdin Wall (TW) mm Extra tdin Wall (XTW) mm Ultra tdin Wall (UTW) mm
30 0.304 – 0.317 0.064 – 0.089
29 o.330 – 0.342 0.064 – 0.089
28 0.355 – 0.368 0.076 – 0.102
27 0.406 – 0.419 0.089 – 0.115 0.064 – 0.089
26 0.457 – 0.469 0.089 – 0.114
25 0.508 – 0.520 0.115 – 0.140 0.089 – 0.114
24 0.558 – 0.571 0.114 – 0.140 0.089 – 0.114 0.051 – 0.102
23 0.635 – 0.647 0.140 – 0.165 0.089 – 0.114 0.051 – 0.102
22 0.711 – 0.723 0.140 – 0.165 0.096 – 0.121 0.077 – 0.102 0.051 – 0.102
21 0.812 – 0.825 0.140 – 0.165 0.102 – 0.127 0.051 – 0.102
20 0.901 – 0.914 0.108 – 0.165 0.108 – 0.134
19 1.054 – 1.079 0.166 – 0.216 0.102 – 0.140 0.070 – 0.108
18 1.257 – 1.282 0.191 – 0.241 0.127 – 0.165 0.083 – 0.121 0.051 – 0.102
17 1.460 – 1.485 0.177 – 0.229 0.115 – 0.152 0.083 – 0.127 0.057 – 0.102
16 1.638 – 1.663 0.204 – 0.254 0.127 – 0.165 0.096 – 0.133 0.070 – 0.121
15 1.816 – 1.841 0.204 – 0.254 0.127 – 0.165 0.096 – 0.134 0.070 – 0.121
14 2.082 – 2.133 0.216 – 0.292 0.165 – 0.229 0.114 – 0.165 0.076 – 0.134
13 2.387 – 2.438 0.267 – 0.343 0.191 – 0.267
12 2.743 – 2.749 0.267 – 0.321
11 3.023 – 3.073 0.293 – 0.368 0.216 – 0.292
10 3.378 – 3.429 0.318 – 0.394 0.216 – 0.292
SS CAPILLARY TUBE PRESSURE RATING
AVE. WALL INCHES MIN YIELD STRENGTH (PSI) MIN TENSILE STRENGTH (PSI) THEORETICAL BURST PRESSURE * (PSI) WORKING PRESSURE (PSI) 25% OF BURST THEORETICAL YIELD POINT ** (PSI) COLLAPSE PRESSURE *** (PSI)
0.250 0.020 30,000 75,000 14,286 3,571 5,714 4,416
0.250 0.028 30,000 75,000 21,649 5,412 8,660 5,967
0.250 0.035 30,000 75,000 29,167 7,292 11,667 7,224
0.250 0.049 30,000 75,000 48,355 12,089 19,342 9,455
0.250 0.065 30,000 75,000 81,250 20,313 32,500 11,544
0.375 0.020 30,000 75,000 8,955 2,239 3,582 3,029
0.375 0.028 30,000 75,000 13,166 3,292 5,266 4,145
0.375 0.035 30,000 75,000 17,213 4,303 6,885 5,077
0.375 0.049 30,000 75,000 26,534 6,634 10,614 6,816
0.375 0.065 30,000 75,000 39,796 9,949 15,918 8,597
0.500 0.020 30,000 75,000 6,522 1,630 2,609 2,304
0.500 0.028 30,000 75,000 9,459 2,365 3,784 3,172
0.500 0.035 30,000 75,000 12,209 3,052 4,884 3,906
0.500 0.049 30,000 75,000 18,284 4,571 7,313 5,304
0.500 0.065 30,000 75,000 26,351 6,588 10,541 6,786
0.500 0.083 30,000 75,000 37,275 9,319 14,910 8,307
0.625 0.020 30,000 75,000 5,128 1,282 2,051 1,859
0.625 0.028 30,000 75,000 7,381 1,845 2,953 2,568
0.625 0.035 30,000 75,000 9,459 2,365 3,784 3,172
0.625 0.049 30,000 75,000 13,947 3,487 5,579 4,335
0.625 0.065 30,000 75,000 19,697 4,924 7,879 5,591
0.625 0.083 30,000 75,000 27,124 6,781 10,850 6,910
0.625 0.095 30,000 75,000 32,759 8,190 13,103 7,734
0.625 0.109 30,000 75,000 40,172 10,043 16,069 8,639
0.750 0.028 30,000 75,000 6,052 1,513 2,421 2,156
0.750 0.035 30,000 75,000 7,721 1,930 3,088 2,669
0.750 0.049 30,000 75,000 11,273 2,818 4,509 3,664
0.750 0.065 30,000 75,000 15,726 3,931 6,290 4,749
0.750 0.083 30,000 75,000 21,318 5,330 8,527 5,905
0.750 0.095 30,000 75,000 25,446 6,362 10,179 6,637
0.750 0.109 30,000 75,000 30,733 7,683 12,293 7,453
0.750 0.120 30,000 75,000 35,294 8,824 14,118 8,064
0.875 0.020 30,000 75,000 3,593 898 1,437 1,340
0.875 0.028 30,000 75,000 5,128 1,282 2,051 1,859
0.875 0.035 30,000 75,000 6,522 1,630 2,609 2,304
0.049 30,000 75,000 9,459 2,365 3,784 3,172
0.875 0.065 30,000 75,000 13,087 3,272 5,235 4,126
0.875 0.083 30,000 75,000 17,560 4,390 7,024 5,152
0.875 0.095 30,000 75,000 20,803 5,201 8,321 5,807
0.875 0.109 30,000 75,000 24,886 6,221 9,954 6,543
0.875 0.120 30,000 75,000 28,346 7,087 11,339 7,100
1.000 0.028 30,000 75,000 4,449 1,112 1,780 1,633
1.000 0.035 30,000 75,000 5,645 1,411 2,258 2,027
1.000 0.049 30,000 75,000 8,149 2,037 3,259 2,796
1.000 0.065 30,000 75,000 11,207 2,802 4,483 3,647
1.000 0.083 30,000 75,000 14,928 3,732 5,971 4,567
1.000 0.095 30,000 75,000 17,593 4,398 7,037 5,159
1.000 0.109 30,000 75,000 20,908 5,227 8,363 5,827
1.000 0.120 30,000 75,000 23,684 5,921 9,474 6,336
1.000 0.134 30,000 75,000 27,459 6,865 10,984 6,963
1.250 0.035 30,000 75,000 4,449 1,112 1,780 1,633
1.250 0.049 30,000 75,000 6,380 1,595 2,552 2,260
STAINLESS STEEL CAPILLARY TUBE DIMENSIONAL TOLERANCES
SIZE OD NOMINAL WALL THICKNESS OUTSIDE DIAMETER TOLERANCE LENGTH TOLERANCE WALL THICKNESS TOLERANCE
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (%)
½ 12.7 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
¾ 19.1 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
1 25.4 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
1½ 38.1 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18, -0 +/-10.0%
2 50.8 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18, -0 +/-10.0%
2½ 63.5 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18, -0 +/-10.0%
3 76.2 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18, -0 +/-10.0%
4 101.6 0.083 2.11 +/-0.015 +/-0.38 +⅛, -0 +3.18, -0 +/-10.0%
6 152.4 0.109 2.77 +/-0.030 +/-0.76 +1, -0 +25.4, -0 +/-10.0%
STAINLESS STEEL CAPILLARY TUBE CHEMICAL COMPOSITION

The below table shows the chemical composition of the used for Stainless Steel Capillary Tube:

STAINLESS STEEL CAPILLARY TUBE GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
TP304L S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
TP316 S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
TP316L S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0
STAINLESS STEEL CAPILLARY TUBE MECHANICAL PROPERTIES
aterial Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
º F(º C)
TP304 Solution 1900 (1040) 75(515) 30(205) 35
TP304L Solution 1900 (1040) 70(485) 25(170) 35
TP316 Solution 1900(1040) 75(515) 30(205) 35
TP316L Solution 1900(1040) 70(485) 25(170) 35
STAINLESS STEEL CAPILLARY TUBING EQUIVALENT GRADES
GRADE UNS NO DIN/WERKSTOFF
Stainless Steel Capillary Tube 304 S30400 1.4301
Stainless Steel Capillary Tube 304L S30403 1.4306
Stainless Steel Capillary Tube 316 S31600 1.4436
Stainless Steel Capillary Tube 316L S31603 1.4404
AVAILABLE STOCK OF SS CAPILLARY TUBE
Stainless Steel Capillary Tube Stainless Steel Seamless Capillary Tube
Stainless Steel Bright Polished Capillary Tube Stainless Steel Capillary Tubing
Stainless Steel Seamless Capillary Tube SS Capillary Tubing
Seamless Stainless Steel Capillary Tube ESI Stainless Steel Capillary Tube
Stainless Steel Capillary Tube Stainless Steel Welded Capillary Tube
304 Stainless Steel Capillary Tube 316L Stainless Steel Capillary Tube
Stainless Steel 201 Capillary Tubes Polished 316 Stainless Steel Capillary Tube
Stainless Steel 202 Capillary Tube Stainless Steel 304 / 304L Capillary Tube
SS Capillary Tube 316 Stainless Steel Capillary Tube
304 Stainless Steel Capillary Tube ASTM304 Stainless Steel Capillary Tube
stainless steel Capillary tubing od 8mm x 6mm od 304 Stainless Steel Capillary Tube
Mirror Polished stainless steel Capillary Tube Stainless Steel Electropolished Capillary Tubes
high quality stainless steel Capillary Tube 316 Stainless Steel Capillary Tube
stainless steel Capillary Tube ASTM / ASME Stainless Steel Capillary Tube
stainless steel Capillary tubing SS 304l Capillary Tube
Stainless steel Capillary tube SS 316L Capillary Tube
stainless steel Capillary tubing Stainless Steel Welded Capillary Tube
SS welded Capillary Tube Stainless Steel Seamless Capillary Tube
Bright Polished, Cleaned, Passivated Capillary Tubes Steel Capillary Tubes
316 Stainless Steel Capillary Tubing Stainless Steel 1/16 in. Capillary Tubing
Capillary tubing AISI Stainless Steel Capillary Tubes
Stainless Steel Capillary Tube Ss Capillary Tube
Steel Capillary Tube Stainless Capillary Tube
UNS S30400 SS Capillary Tubes Stainless Steel Electropolished Capillary Tubes
ASTM/ASME SS Capillary Tubes AISI Stainless Steel Capillary Tubes
SS Semi Seamless Capillary Tubes Bright Polished, Cleaned, Passivated Capillary Tubes
SS 316 UNS S31600 Capillary Tubes Steel 317 DIN 1.4449 Capillary Tubes
TP 410 SS Capillary Tubes Stainless Steel Capillary Tubes
Stainless Steel 321/321H Capillary Tubing 904L Stainless Steel Capillary Tubes
SS 446 ERW Capillary Tubes 347H SS EFW Capillary Tubes
Stainless Steel Seamless Capillary Tube SS Welded Capillary Tubes
SS 321H UNS S32109 Capillary Tubes WERKSTOFF NR. 1.4961 SS Capillary Tubes
Stainless Steel TP Capillary Tubes Steel Capillary Tubes
SS Semi-Seamless Capillary Tubes 321 / 321H Capillary SS Tubes
Stainless Steel 316/L/H/316LN Capillary Tubes UNS S31000 SS Capillary Tubes
DIN 1.4539 SS Electropolished Capillary Tubes Stainless Steel 317 / 317L Capillary Tubing
STAINLESS STEEL CAPILLARY TUBE PRICE LIST
  • stainless steel Capillary Tube
    FOB Price: US $1o00-2100 / Ton
  • 202 stainless steel seamless Capillary Tube
    FOB Price: US $1-4000 / Ton
  • 316l Stainless Steel Capillary Tube
    FOB Price: US $1200-2200 / Ton
  • 316L Capillary Stainless Steel Tube
    FOB Price: US $1500-2200 / Ton
  • 304 stainless steel Capillary Tube
    FOB Price: US $1200-2200 / Ton
  • 304 stainless steel Capillary Tube
    FOB Price: US $1200-2000 / Ton
  • China warehouse stainless steel Capillary Tube
    FOB Price: US $1000-2200 / Ton
  • Capillary stainless steel tube for sale
    FOB Price: US $2100-3500 / Ton
  • High Quality 316 316L 304L 304 Stainless Steel Capillary Tube Price
    FOB Price: US $1200-2200 / Ton
  • 201 stainless steel Capillary Tube
    FOB Price: US $1000-2500 / Metric Ton
  • Factory wholesale stainless steel Capillary Tube 304 for sale
    FOB Price: US $4-5 / Kilogram
  • price of stainless steel Capillary Tube
    FOB Price: US $1000-3500 / Metric Ton
  • polished stainless steel Capillary Tube price
    FOB Price: US $1200-2200 / Metric Ton
  • China new 304 stainless steel Capillary Tube price per meter
    FOB Price: US $2-2.5 / Kilogram
  • welded stainless steel Capillary Tube
    FOB Price: US $1000-2200 / Ton
  • Welded Stainless Steel Capillary Tube
    FOB Price: US $690-1200 / Ton

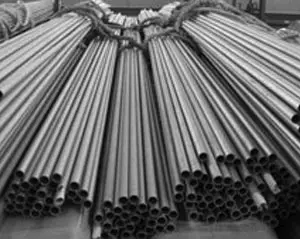

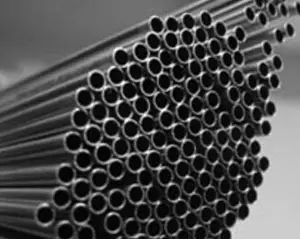

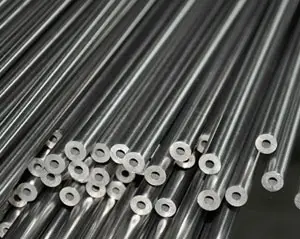

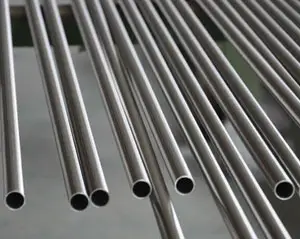

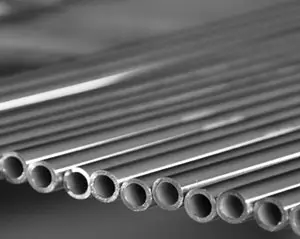

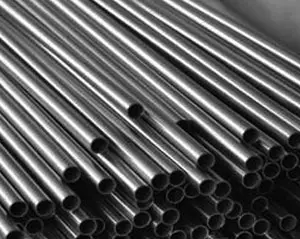

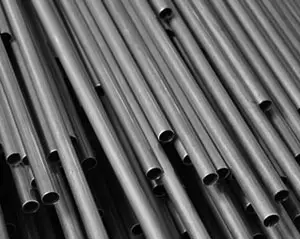

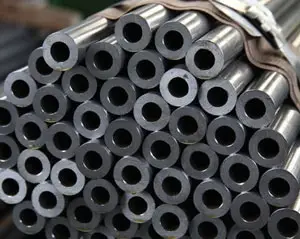

  • Stainless Steel 201 Capillary Tube
    FOB Price: US $1000-3000 / Ton
  • Capillary tubing price
    FOB Price: US $100-1000 / Ton
  • bright polished stainless steel Capillary tube
    FOB Price: US $1500.0-2300.0 / Metric Tons
  • high quality seamless Capillary Tube 316 stainless steel
    FOB Price: US $1400-2200 / Metric Ton
  • Stainless Steel Welded Capillary Tube
    FOB Price: US $1-30 / Kilogram
  • Hot Sale and Factory Price AISI 201 304 430 stainless steel series Capillary Tubes competitive price
    FOB Price: US $800-2000 / Metric Ton
  • 304 Welded Stainless Steel Capillary Tube Manufacturer
    FOB Price: US $780-1690 / Ton
  • China Manufacturers Capillary Stainless Steel Tube
    FOB Price: US $1200-2500 / Ton
  • Capillary stainless steel tube
    FOB Price: US $1-15 / Kilogram
  • SS304/316 Stainless Steel Capillary Tube
    FOB Price: US $1600-2800 / Ton
  • Stainless Steel Capillary Tube manufacturers price
    FOB Price: US $1000-4500 / Ton
  • 201 304 316 stainless steel Capillary Tube
    FOB Price: US $1000-3500 / Ton
  • 201 316 stainless steel Capillary tube
    FOB Price: US $1400-2500 / Ton
STAINLESS STEEL CAPILLARY TUBES STOCK SUPPLY APPLICATIONS

These stainless steel Capillary Tubes are sold to a wide range of industries/markets, due to their overall corrosion resistance and good machinability:

  • Steel 317 DIN 1.4449 Capillary Tubes for Chemical and petrochemical
  • Stainless Steel Capillary Tubing for Renewable energy
  • TP 410 SS Capillary Tubes applications for Food and beverage
  • Stainless Steel Capillary Tubes for Pulp and Paper
  • SS Capillary Tube application for Fertilizers
  • Stainless Steel 321/321H Capillary Tubing for Process piping
  • SS 446 ERW Capillary Tubes used for Water/waste
  • 347H SS EFW Capillary Tubes applications in Mining
  • Stainless Steel Capillary Tubing used for Pharmaceutical
  • Stainless Steel Seamless Capillary Tube application for Marine Industry
  • 904L Stainless Steel Capillary Tubes used for Power generation
  • SS Welded Capillary Tubes used for Oil and gas

EXPORTERS OF SS 304 CAPILLARY TUBE, AVAILABLE STAINLESS STEEL 1/16 IN. CAPILLARY TUBING, HIGH-QUALITY OF SS 316 CAPILLARY TUBE, HPLC STAINLESS STEEL CAPILLARY TUBING SUPPLIERS, MANUFACTURERS OF 316 STAINLESS STEEL CAPILLARY TUBE.
TRADERS OF STAINLESS STEEL 201 CAPILLARY TUBES, CHECK 304 STAINLESS STEEL CAPILLARY TUBES SIZE, LOOKING FOR 304 CAPILLARY TUBES ? SS SEAMLESS CAPILLARY TUBE SUPPLIERS IN China.
